High Power WR-90 Waveguide Terminations

Check out our new RF calculators & conversion tools...

90 Watts High Power WR-90 Waveguide Load 8.2 GHz to 12.4 GHz

Product ID: PE6824

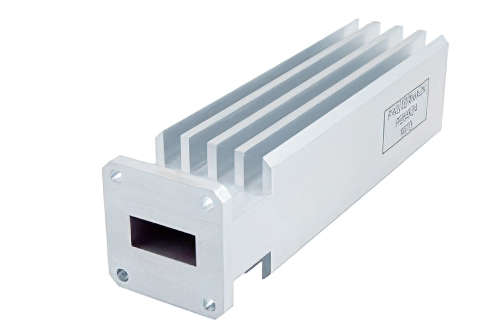

90 Watts High Power WR-90 Waveguide Load 8.2 GHz to 12.4 GHz


Image Views:  90 Watts High Power WR-90 Waveguide Load 8.2 GHz to 12.4 GHz high resolution
Zoomalternate image
View 2


Click for:PE6824 Datasheet
Click for:PE6824 RoHS Cert
Click for:PE6824 REACH Cert
Available Quantity: 6
Pricing Table
QUANTITYPRICE
1-24$1,068.78
25-49$993.97
50-99$919.15
100-249$855.02
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Maximum Power90 Watt
Waveguide SizeWR-90
Minimum Frequency8.2 GHz
Maximum Frequency12.4 GHz
Impedance50 Ohm


90 Watts High Power WR-90 Waveguide Load 8.2 GHz to 12.4 GHz

PE6824 90 Watts medium power waveguide load (also known as waveguide termination) has a WR-90 input. This Pasternack WR-90 waveguide load / termination is rated for a minimum frequency of 8.2 GHz and a maximum frequency of 12.4 GHz. Our WR-90 waveguide terminator has a maximum input power of 90 Watts.

WR-90 waveguide load / termination PE6824 has an average maximum VSWR of 1.07:1. This Pasternack WR-90 medium power waveguide termination / load is part of over 40,000 in-stock RF, microwave and millimeter wave components. Our WR-90 load ships same day as purchased worldwide as with our other RF parts.
