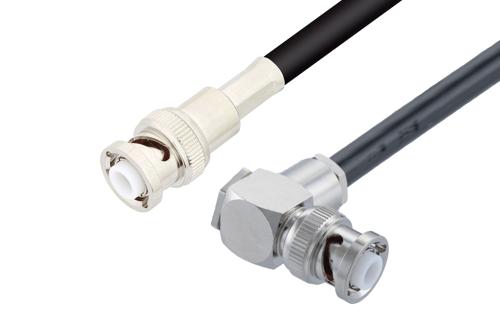

Radio frequency assembly MHV male to MHV male right angle cable using 75 Ohm RG59 coax from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The MHV male to MHV male right angle cable using 75 Ohm RG59 coax, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom MHV to MHV cable assembly orders will ship the same business day as well.
Pasternack RF coax cable assembly is built with a MHV cable connection on one end and a right angle MHV cable connection on the other. Our MHV to right angle MHV cable assembly has a male gender on end 1 and a male on end 2. PE33057 can also be known as a MHV plug to right angle MHV plug cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.5-inch diameter has copper clad steel as the cable's inner conducting material and PE dielectric type.
Our PE33057 RF cable has a PVC (NC) jacket of 0.242-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -25 to 70 degrees C. The flexible RF cable has an in-series connection. Our MHV male to right angle MHV male cable has a maximum VSWR of 1.4:1.
MHV plug to MHV plug cable assembly PE33057 is built with RG59 which is a flexible coax type. The Pasternack flexible MHV cable assembly is manufactured with MHV to right angle MHV cable connectors, has a 50 Ohm impedance, and is single shielded. One connector features the crimp/solder attachment method and a brass body with nickel plating, while the other has the clamp/solder attachment method and a brass body with nickel plating. Additional dimensions, specifications and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE33057 can also be used in the other direction and will be a right angle MHV male to MHV male cable assembly if the opposite connectivity is required.
MHV plug to MHV right angle plug cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality MHV to MHV cable assembly for quick shipment worldwide. Variations of MHV cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal MHV to MHV RF cable assembly as per your requirements.
