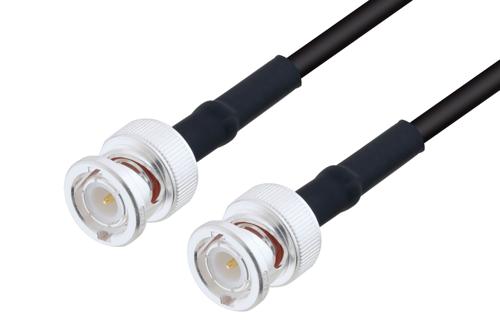

Radio frequency assembly MIL-DTL-17 BNC male to BNC male cable using M17/183-00001 coax from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack MIL-DTL-17 (also referenced as MIL-C-17) coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The MIL-DTL-17 BNC male to BNC male cable using M17/183-00001 coax, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom M39012/16-0013 BNC to M39012/16-0013 BNC cable assembly orders will ship the same business day as well.
Pasternack RF coax cable assembly is built with a M39012/16-0013 BNC cable connection on one end and a M39012/16-0013 BNC cable connection on the other. Our M39012/16-0013 BNC to M39012/16-0013 BNC cable assembly has a male gender on end 1 and a male on end 2. PE3M0253 can also be known as a MIL-DTL-17/MIL-C-17 M39012/16-0013 BNC plug to M39012/16-0013 BNC plug cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.5-inch diameter has tinned copper as the cable’s inner conducting material and PE dielectric type.
BNC cable assemblies from Pasternack are ideal for applications including Hi-Rel, MIL-DTL-17 requirements, Avionics, IFF, Satcom and ECM. Our PE3M0253 RF cable has a PVC jacket of 0.195-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -30 to 85 degrees C. The flexible RF cable has an in-series connection. Our BNC male to BNC male cable has a maximum VSWR of 1.4:1.
M39012/16-0013 BNC plug to M39012/16-0013 BNC plug cable assembly PE3M0253 is built with M17/183-00001 which is a flexible coax type. The Pasternack flexible M39012/16-0013 BNC cable assembly is manufactured with M39012/16-0013 BNC to M39012/16-0013 BNC cable connectors, has a 50 Ohm impedance, and is double shielded. Both the connectors have a crimp/solder (captive contact) attachment method and a brass body with silver plating. Additional dimensions, specifications and CAD drawings for this RF cable are available on our downloadable PDF datasheet.
M39012/16-0013 BNC plug to M39012/16-0013 BNC plug cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality M39012/16-0013 BNC to M39012/16-0013 BNC cable assembly for quick shipment worldwide. Variations of M39012/16-0013 BNC cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal BNC to BNC RF cable assembly as per your requirements.
