75 Ohm Mini SMB Jack Connector Solder Attachment .062 inch End Launch PCB

Name: 75 Ohm Mini SMB Jack Connector Solder Attachment .062 inch End Launch PCB
Brand: Pasternack
SKU: PE44131
Availability: InStock

Product ID: PE44131

Pricing

Quantity	Price
1-24	$12.49

* All Prices are in US Dollars and do not include duties

Buy

How many?

Available Quantity: 207

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties

View
Datasheet

3D CAD
Model
(.step)

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Polarity	Standard
Connector Series	Mini SMB
Connector Gender	Jack
Impedance	75 Ohm
Body Style	Straight
Attachment Method	Solder
Mount Method	None
Minimum Frequency	DC
Maximum Frequency	2 GHz
Interface Type 1	.062 inch End Launch

Description

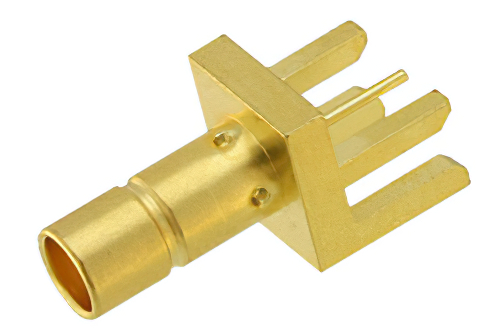

75 Ohm Mini SMB Jack Connector Solder Attachment .062 inch End Launch PCB

PE44131 Mini SMB jack pcb connector has an interface type of .062 inch end launch and a 75 Ohm impedance. Pasternack Mini SMB jack connector uses shield/contact solder as an attachment method. Our jack Mini SMB pcb connector provides a minimum frequency of DC and a maximum frequency of 2 GHz.

The Pasternack Mini SMB jack pcb connector has a PTFE dielectric type. The Pasternack Mini SMB pcb connector has a brass body with gold over nickel plating. Our PE44131 Mini SMB connector uses beryllium copper contact. This Mini SMB jack pcb RF connector is REACH compliant.

This Pasternack jack Mini SMB connector will ship the same day as purchased. Our Mini SMB jack connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom Mini SMB connector cable assemblies that will ship the same day as well.
