Mini SMB 75 Ohm to BNC 75 Ohm Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

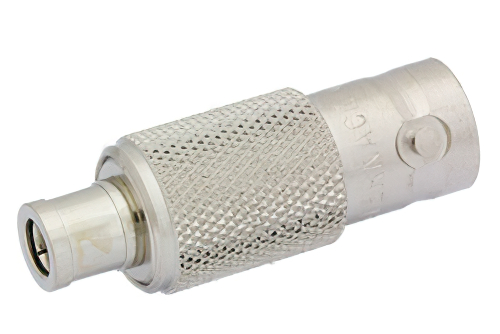

75 Ohm Mini SMB Plug to 75 Ohm BNC Female Adapter

Product ID: PE9617
75 Ohm Mini SMB Plug to 75 Ohm BNC Female Adapter

Image Views:  75 Ohm Mini SMB Plug to 75 Ohm BNC Female Adapter high resolution
Zoom


Click for:PE9617 Datasheet
Click for:PE9617 RoHS Cert
Click for:PE9617 REACH Cert
Available Quantity: 227
Pricing Table
QUANTITYPRICE
1-24$57.20
25-49$53.20
50-99$49.19
100-249$45.76
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1Mini SMB
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Impedance 175 Ohm
Connector Series 2BNC
Connector Gender 2Female
Connector Polarity 2Standard
Connector Impedance 275 Ohm
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Body Material 1Brass
Connector Body Plating 1Nickel
Connector Mount Method 2None


75 Ohm Mini SMB Plug to 75 Ohm BNC Female Adapter

Mini SMB adapter PE9617 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our Mini SMB to BNC adapter is a between series coaxial adapter design. This 75 Ohm Mini SMB adapter is precision manufactured to RF components industry specifications.

Mini SMB plug to BNC female adapter is one of the many RF components that ship same day as they are ordered. PE9617 plug Mini SMB to female BNC adapter has a straight body. This Pasternack straight Mini SMB coax adapter is a in-line RF adapter.

Our plug Mini SMB to female BNC adapter PE9617 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This Mini SMB to BNC radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
