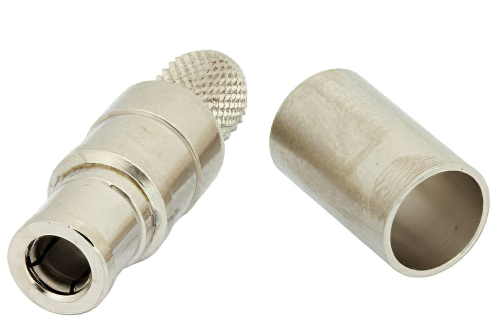

PE4994 Mini SMB plug coaxial connector has an interface type of Mini SMB plug which is compatible with RG59B/U, RG62 and RG71 cables and has an impedance of 75 Ohms. Pasternack's Mini SMB plug connector uses crimp/solder as an attachment method. Our plug Mini SMB coaxial connector provides a maximum frequency of 2 GHz. This Mini SMB plug RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online Cable Creator.

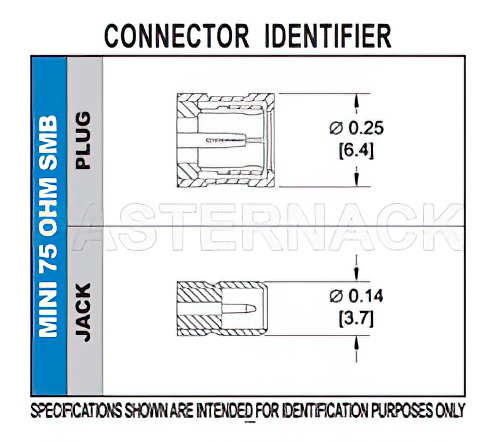

The Pasternack Mini SMB plug coaxial connector has a PTFE dielectric type. Pasternack's Mini SMB coaxial connector has a brass body with nickel plating. Our PE4994 Mini SMB connector uses agold-plated beryllium copper contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector made from brass material has a contact life of 500 cycles or more. The PE4994 Mini SMB connector operates at a temperature range of -65 to 165 deg C. This Mini SMB connector has a gold inner contact plating. The Pasternack Mini SMB plug connector has a maximum operating voltage of 335 Vrms and a dielectric withstanding voltage of 750 Vrms. This coaxial RF connector comes with a minimum insulation resistance of 1,000 MOhms. Our Mini SMB plug connector has a length of 1.144 inches, a width of 0.305 inches, and a weight of 0.012 lbs.
This Pasternack plug Mini SMB connector will ship the same business day as purchased. Our Mini SMB plug connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
