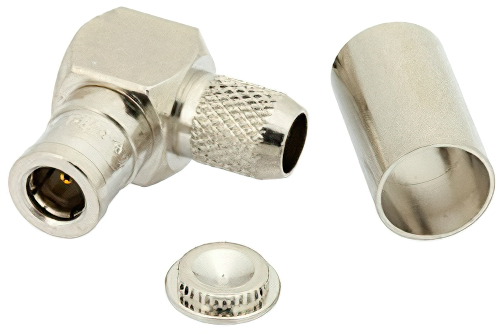

PE4996 Mini SMB plug right angle coaxial connector has an interface type of Mini SMB plug which is compatible with RG59B/U, RG62 and RG71 cables and has an impedance of 75 Ohms. Pasternack's Mini SMB plug connector uses crimp/solder as an attachment method. This Mini SMB plug RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online Cable Creator.

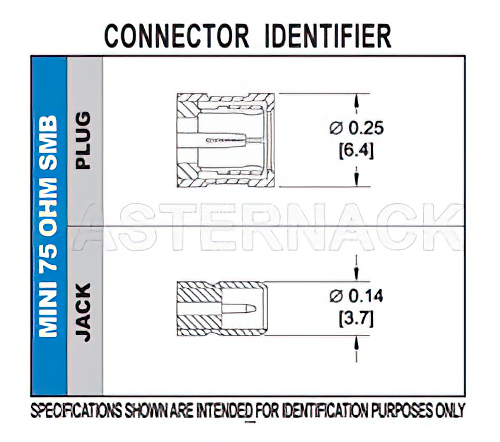

The Pasternack right angle Mini SMB plug coaxial connector has a PTFE dielectric type. Pasternack's Mini SMB coaxial connector has a brass body with nickel plating. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
Our high-quality PE4996 features a QQ-N-290 body plating specification. The PE4996 Mini SMB connector operates at a temperature range of -65 to 165 deg C. This right angle Mini SMB connector has a gold inner contact plating.
This Pasternack right angle plug Mini SMB connector will ship the same business day as purchased. Our Mini SMB right angle plug connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
