75 Ohm Mini SMB Plug Right Angle Connectors

Check out our new RF calculators & conversion tools...

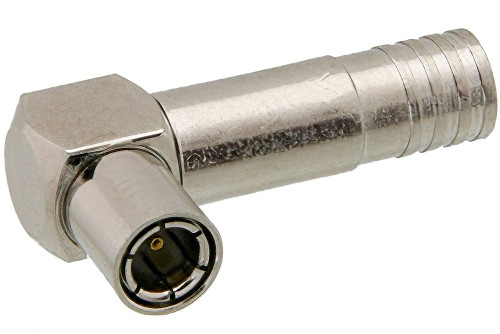

75 Ohm Mini SMB Plug Right Angle Connector Crimp/Solder Attachment for PE-B159, 1855A, Mini 59

Product ID: PE44589
75 Ohm Mini SMB Plug Right Angle Connector Crimp/Solder Attachment for PE-B159, 1855A, Mini 59


Image Views:  75 Ohm Mini SMB Plug Right Angle Connector Crimp/Solder Attachment for PE-B159, 1855A, Mini 59 high resolution
Zoomalternate image
View 2


Click for:PE44589 Datasheet
Click for:PE44589 RoHS Cert
Click for:PE44589 REACH Cert
Available Quantity: 53
Pricing Table
QUANTITYPRICE
1-24$30.49
25-49$28.36
50-99$26.22
100+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesMini SMB
Connector GenderPlug
Impedance75 Ohm
Body StyleRight Angle
Attachment MethodCrimp/Solder
Mount MethodNone


75 Ohm Mini SMB Plug Right Angle Precision Connector Crimp/Solder Attachment For Mini 59, PE-B159

PE44589 Mini SMB plug right angle coaxial connector has an interface type of Mini 59, PE-B159 and a 75 Ohm impedance. Pasternack Mini SMB plug connector uses shield/contact crimp/solder as an attachment method.

The Pasternack right angle Mini SMB plug coaxial connector has a delrin dielectric type. The Pasternack Mini SMB coaxial connector has a brass body with nickel plating. Our PE44589 Mini SMBright angle connector uses phosphor bronze contact. This Mini SMB plug right angle coaxial RF connector is RoHS and REACH compliant.

This Pasternack right angle plug Mini SMB connector will ship the same day as purchased. Our Mini SMB right angle plug connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom Mini SMB connector cable assemblies that will ship the same day as well.
