Mini SMP to Mini SMP Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

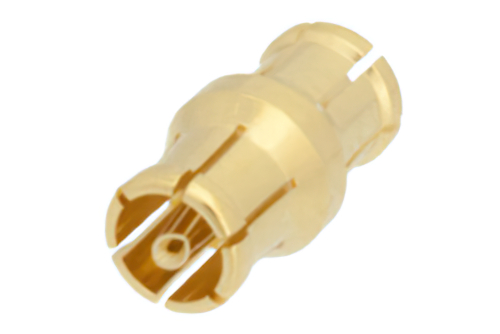

Mini SMP Female to Mini SMP Female Adapter

Product ID: PE91069
Mini SMP Female to Mini SMP Female Adapter


Image Views:  Mini SMP Female to Mini SMP Female Adapter high resolution
Zoomalternate image
View 2


Click for:PE91069 Datasheet
Click for:PE91069 RoHS Cert
Click for:PE91069 REACH Cert
Available Quantity: 314
Pricing Table
QUANTITYPRICE
1-24$28.42
25-49$27.00
50-99$25.58
100-249$24.44
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1Mini SMP
Connector Gender 1Female
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2Mini SMP
Connector Gender 2Female
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Frequency, MinDC
Frequency, Max26.5 GHz
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Mount Method 2None


Mini SMP Female to Mini SMP Female Adapter

Mini SMP adapter PE91069 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our Mini SMP to Mini SMP adapter is a in-series coaxial adapter design. This 50 Ohm Mini SMP adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 26.5 GHz.

Mini SMP female to Mini SMP female adapter is one of the many RF components that ship same day as they are ordered. PE91069 female Mini SMP to female Mini SMP adapter has a straight body. This Pasternack straight Mini SMP coax adapter is a in-line RF adapter.

Our female Mini SMP to female Mini SMP adapter PE91069 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This Mini SMP to Mini SMP radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
