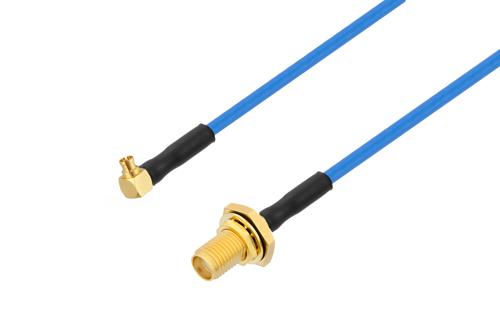

Radio frequency assembly mini SMP female right angle to SMA female bulkhead cable using PE-P086 coax with double heatshrink from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The mini SMP female right angle to SMA female bulkhead cable using PE-P086 coax with double heatshrink, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom mini SMP to SMA cable assembly orders will ship the same business day as well.
Pasternack RF coax cable assembly is built with a right angle mini SMP cable connection on one end and a SMA bulkhead cable connection on the other. Our right angle mini SMP to SMA cable assembly has a female gender on end 1 and a female on end 2. PE3C7527/HS2 can also be known as a right angle mini SMP jack to SMA jack cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.5-inch diameter has copper clad steel as the cable's inner conducting material and PTFE dielectric type.
This cable assembly employs durable and flexible materials, and with a 0.5-inch bend radius, it can withstand repetitive movements, ensuring reliable performance over extended periods. Our PE3C7527/HS2 RF cable has a FEP jacket of 0.104-inch diameter. The flexible RF cable has a between series connection. This cable assembly has a typical propagation velocity of 70% and a minimum RF shielding of 110 dB. Our right angle Mini SMP female to bulkhead SMA female cable has a maximum VSWR of 1.4:1.
Mini SMP jack to SMA jack cable assembly PE3C7527/HS2 is built with PE-P086 which is a flexible coax type. The Pasternack flexible Mini SMP cable assembly is manufactured with right angle mini SMP to SMA cable connectors, has a 50 Ohm impedance, and is double shielded. One connector features the solder attachment method and a brass body with gold plating, while the other has the solder/solder attachment method and a brass body with gold over nickel plating. Additional dimensions, specifications and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE3C7527/HS2 can also be used in the other direction and will be a SMA female bulkhead to right angle mini SMP female cable assembly if the opposite connectivity is required.
Mini SMP right angle jack to SMA jack bulkhead cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality mini SMP to SMA cable assembly for quick shipment worldwide. Variations of mini SMP and SMA cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal Mini SMP to SMA RF cable assembly as per your requirements.
