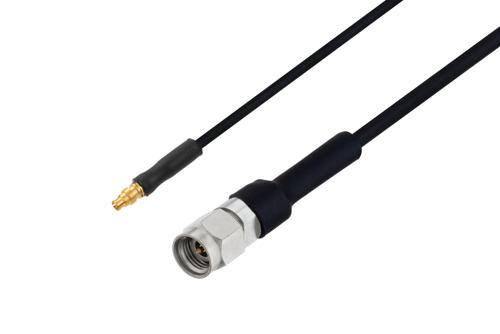

Radio frequency assembly mini SMP female to 2.92mm male cable using PE-SR405FLJ coax with heatshrink from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The mini SMP female to 2.92mm male cable using PE-SR405FLJ coax with heatshrink, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom mini SMP to 2.92mm cable assembly orders will ship the same business day as well.
Pasternack RF coax cable assembly is built with a mini SMP cable connection on one end and a 2.92mm cable connection on the other. Our mini SMP to 2.92mm cable assembly has a female gender on end 1 and a male on end 2. PE3C1104/HS can also be known as a mini SMP jack to 2.92mm plug cable assembly and will be shipped the same day as it is purchased. This formable RF cable assembly with a 0.5-inch diameter has copper clad steel as the cable's inner conducting material and PTFE dielectric type.
This cable assembly employs durable and flexible materials, and with a 0.787-inch bend radius, it can withstand repetitive movements, ensuring reliable performance over extended periods. Our PE3C1104/HS RF cable has a FEP jacket of 0.105-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -55 to 125 degrees C. The formable RF cable has a between series connection. This cable assembly has a typical propagation velocity of 69.5% and a minimum RF shielding of 100 dB. Our Mini SMP female to 2.92mm male cable has a maximum VSWR of 1.4:1.
Mini SMP jack to 2.92mm plug cable assembly PE3C1104/HS is built with PE-SR405FLJ which is a formable coax type. The Pasternack formable Mini SMP cable assembly is manufactured with mini SMP to 2.92mm cable connectors, has a 50 Ohm impedance, and is single shielded. One connector features the solder attachment method and a beryllium copper body with gold plating, while the other has the clamp/solder attachment method. Additional dimensions, specifications and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE3C1104/HS can also be used in the other direction and will be a 2.92mm male to mini SMP female cable assembly if the opposite connectivity is required.
Mini SMP jack to 2.92mm plug cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality mini SMP to 2.92mm cable assembly for quick shipment worldwide. Variations of mini SMP and 2.92mm cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal Mini SMP to 2.92mm RF cable assembly as per your requirements.
