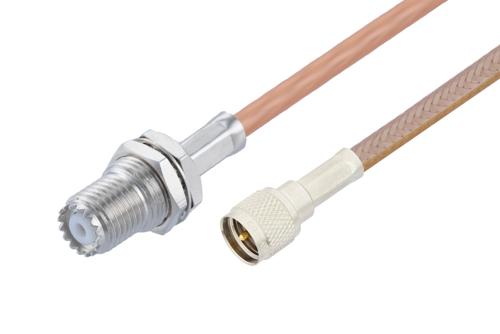

Radio frequency assembly mini UHF female bulkhead to push-on mini UHF male cable using RG400 coax from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The mini UHF female bulkhead to push-on mini UHF male cable using RG400 coax, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom mini UHF to mini UHF cable assembly orders will ship the same business day as well.
Pasternack RF coax cable assembly is built with a mini UHF bulkhead cable connection on one end and a mini UHF cable connection on the other. Our mini UHF to mini UHF cable assembly has a female gender on end 1 and a male on end 2. PE3W11002 can also be known as a mini UHF jack to mini UHF plug cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.5-inch diameter has copper as the cable's inner conducting material and PTFE dielectric type.
This cable assembly employs durable and flexible materials, and with a 1-inch bend radius, it can withstand repetitive movements, ensuring reliable performance over extended periods. Our PE3W11002 RF cable has a FEP jacket of 0.195-inch diameter. The flexible RF cable has an in-series connection.
Mini UHF jack to mini UHF plug cable assembly PE3W11002 is built with RG400 which is a flexible coax type. The Pasternack flexible Mini UHF cable assembly is manufactured with mini UHF to mini UHF cable connectors, has a 50 Ohm impedance, and is double shielded. Both the connectors have a crimp/solder attachment method and a brass body with nickel plating. Additional dimensions, specifications and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE3W11002 can also be used in the other direction and will be a mini UHF male to mini UHF female bulkhead cable assembly if the opposite connectivity is required.
Mini UHF jack bulkhead to mini UHF plug cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality mini UHF to mini UHF cable assembly for quick shipment worldwide. Variations of mini UHF cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal Mini UHF to Mini UHF RF cable assembly as per your requirements.
