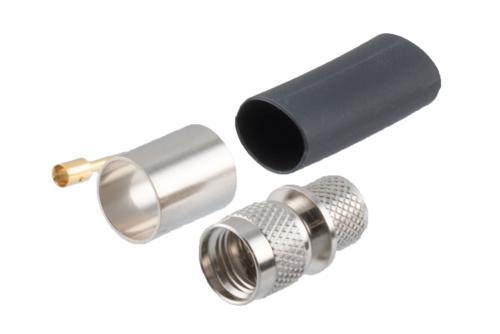

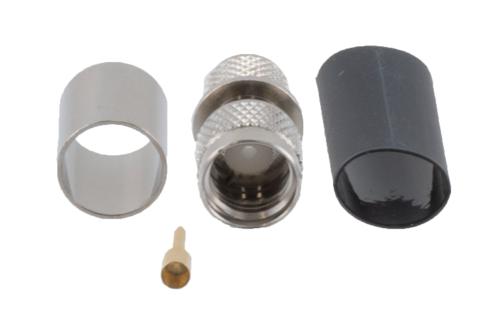

TC-400-MUHF Mini UHF male coaxial connector has an interface type of Mini UHF male which is compatible with LMR-400, LMR-400-DB, LMR-400-UF and LMR-400-LLPX cables and has an impedance of 50 Ohms. Pasternack's Mini UHF male connector uses crimp/solder as an attachment method. Our male Mini UHF coaxial connector provides a maximum frequency of 1 GHz. This Mini UHF male RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online Cable Creator.
The Pasternack Mini UHF male coaxial connector has a delrin dielectric type and a VSWR of 1.35:1. Pasternack's Mini UHF coaxial connector has a brass body with nickel plating. Our TC-400-MUHF Mini UHF connector uses a gold-plated brass contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
This push-on male Mini UHF coaxial RF connector has a maximum insertion loss of 0.15 dB. This Mini UHF connector has a gold inner contact plating. The Pasternack Mini UHF male connector has a maximum operating voltage of 300 Vrms. Our Mini UHF male connector has a length of 0.5 inches, a width of 0.5 inches, and a weight of 0.02 lbs.
This Pasternack male Mini UHF connector will ship the same business day as purchased. Our Mini UHF male connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
*LMR® is a registered trademark of Times Microwave Systems
