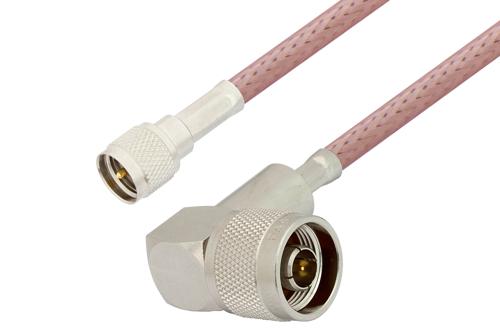

Mini UHF Male to N Male Right Angle Cable Using RG142 Coax
Product ID:
PE3W06403
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Connector Series 1 | Mini UHF |
| Connector Gender 1 | Male |
| Connector Polarity 1 | Standard |
| Connector Angle 1 | Straight |
| Connector Mount Method 1 | None |
| Connector Impedance 1 | 50 Ohm |
| Connector Series 2 | N |
| Connector Gender 2 | Male |
| Connector Polarity 2 | Standard |
| Connector Angle 2 | Right Angle |
| Connector Mount Method 2 | None |
| Connector Impedance 2 | 50 Ohm |
| RF Cable Part Number | RG142B/U |
| RF Cable Type | RG142 |
| RF Cable Impedance | 50 Ohm |
Description
Click on the below images to access KitBOM product pages:
 |  |  |  |
|---|
| PE4521 | RG142B/U | PE4484 | KitBOM Datasheet |
|---|
Mini UHF Male to N Male Right Angle Cable Using RG142 Coax
PE3W06403 is a Mini UHF male to N male right angle cable using RG142 coax. This Pasternack Mini UHF male to N male right angle cable assembly uses a 50 Ohm Mini UHF for connector 1 and a 50 Ohm N for connector 2. Mini UHF to N right angle coaxial cable assembly uses 90 degree right angle coax cable connector.
Our male Mini UHF to male N right angle cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W06403 Mini UHF male to N male right angle cable assembly is constructed with RG142 coax.
