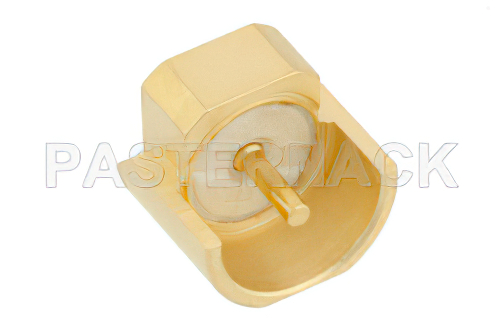

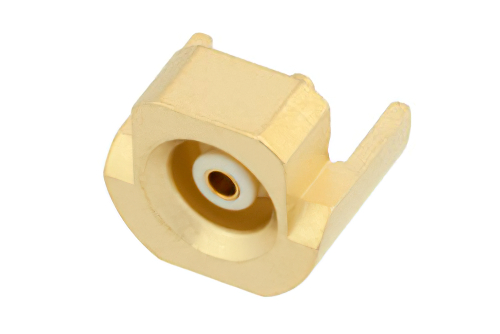

MMBX Jack Snap-On Connector Solder Attachment Edge Launch PCB, With Female Center Contact

Name: MMBX Jack Snap-On Connector Solder Attachment Edge Launch PCB, With Female Center Contact
Brand: Pasternack
SKU: PE45261
Availability: InStock

Product ID: PE45261

Pricing

Quantity	Price
1-24	$17.24

* All Prices are in US Dollars and do not include duties

Buy

How many?

Available Quantity: 57

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties

View
Datasheet

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Polarity	Standard
Connector Series	MMBX
Connector Gender	Jack
Impedance	50 Ohm
Body Style	Straight
Attachment Method	Solder
Mount Method	None
Minimum Frequency	DC
Maximum Frequency	12.4 GHz
Interface Type 1	Edge Launch

Description

MMBX Jack Snap-On Connector Solder Attachment Edge Launch PCB, With Female Center Contact

PE45261 MMBX jack pcb snap-on connector has an interface type of edge launch and a 50 Ohm impedance. Pasternack MMBX jack connector uses shield/contact solder as an attachment method. Our jack MMBX pcb connector provides a minimum frequency of DC and a maximum frequency of 12.4 GHz.

The Pasternack MMBX jack pcb snap-on connector has a PTFE dielectric type and a VSWR of 1.06. The Pasternack MMBX pcb connector has a brass body with gold plating. Our PE45261 MMBX connector uses brass contact and a gold plating material. This MMBX jack pcb snap-on RF connector is RoHS and REACH compliant.

This Pasternack jack MMBX connector will ship the same day as purchased. Our MMBX jack connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom MMBX connector cable assemblies that will ship the same day as well.
