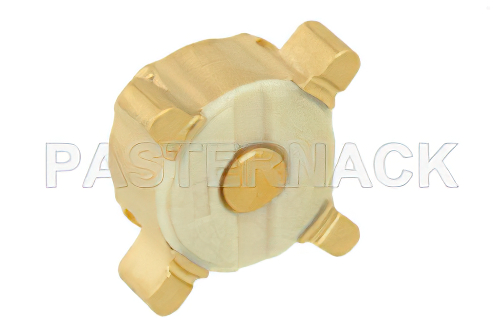

MMBX Jack Snap-On Connector Solder Attachment Surface Mount PCB, With Female Center Contact

Product ID: PE45262TR1
MMBX Jack Snap-On Connector Solder Attachment Surface Mount PCB, With Female Center Contact


Image Views:  MMBX Jack Snap-On Connector Solder Attachment Surface Mount PCB, With Female Center Contact high resolution
Zoomalternate image

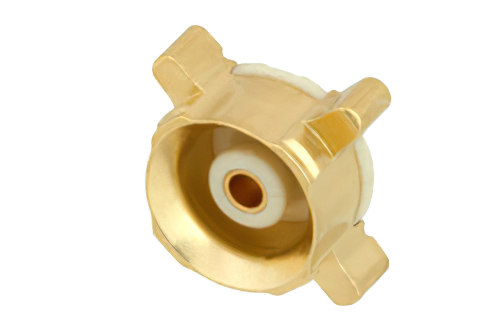

View 2


Click for:PE45262TR1 Datasheet
Click for:PE45262TR1 RoHS Cert
Click for:PE45262TR1 REACH Cert
Available Quantity: 2,241
Pricing Table
QUANTITYPRICE
1-24$10.55
25-49$9.81
50-99$9.07
100-249$8.44
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesMMBX
Connector GenderJack
Impedance50 Ohm
Body StyleStraight
Attachment MethodSolder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency12.4 GHz


MMBX Jack Snap-On Connector Solder Attachment Surface Mount PCB, With Female Center Contact

PE45262TR1 MMBX jack pcb snap-on connector has an interface type of surface mount and a 50 Ohm impedance. Pasternack MMBX jack connector uses shield/contact solder as an attachment method. Our jack MMBX pcb connector provides a minimum frequency of DC and a maximum frequency of 12.4 GHz.

The Pasternack MMBX jack pcb snap-on connector has a ptfe dielectric type and a VSWR of 1.06. The Pasternack MMBX pcb connector has a brass body with gold plating. Our PE45262TR1 MMBX connector uses brass contact and a gold plating material. This MMBX jack pcb snap-on RF connector is REACH compliant.

This Pasternack jack MMBX connector will ship the same day as purchased. Our MMBX jack connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom MMBX connector cable assemblies that will ship the same day as well.
