Snap-On MMBX Plug to Snap-On MMBX Plug Right Angle Cable Using RG316-DS Coax

Product ID: PE3C4049

Length

Standard Length

Custom Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

* All cable assembly length tolerance are as provided on the datasheet. If not provided, cable length tolerances are within the IPC standards (2022-24) as shown here.

View
Datasheet

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	MMBX
Connector Gender 1	Plug
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	MMBX
Connector Gender 2	Plug
Connector Polarity 2	Standard
Connector Angle 2	Right Angle
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	RG316-DS
RF Cable Type	RG316-DS
RF Cable Impedance	50 Ohm

Description

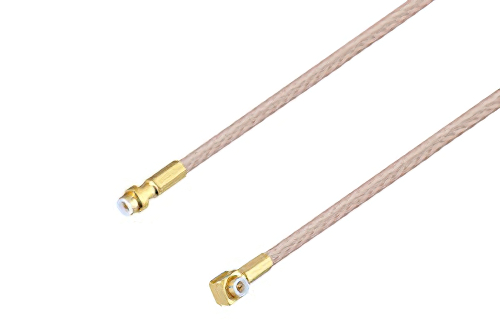

Snap-On MMBX Plug to Snap-On MMBX Plug Right Angle Cable Using RG316-DS Coax

PE3C4049 is a MMBX plug to MMBX plug right angle cable using RG316-DS coax. This Pasternack MMBX plug to MMBX plug right angle cable assembly uses a 50 Ohm MMBX for connector 1 and a 50 Ohm MMBX for connector 2. MMBX to MMBX right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our plug MMBX to plug MMBX right angle cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C4049 MMBX plug to MMBX plug right angle cable assembly is constructed with RG316-DS coax and the maximum VSWR is 1.4:1.
