Type N Female to MMBX Plug Cable Assemblies

Check out our new RF calculators & conversion tools...

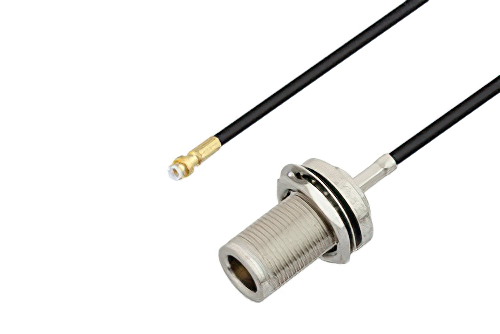

Snap-On MMBX Plug to N Female Bulkhead Cable 4 Inch Length Using RG174 Coax

Product ID: PE3C4040-4
Snap-On MMBX Plug to N Female Bulkhead Cable 4 Inch Length Using RG174 Coax

Image Views:  Snap-On MMBX Plug to N Female Bulkhead Cable 4 Inch Length Using RG174 Coax high resolution
Zoom


Click for:PE3C4040-4 Datasheet
Available Quantity: 59
Standard Lengths
6 in.8 in.12 in.18 in.24 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Pricing Table
QUANTITYPRICE
1-24$58.68
25-49$55.75
50-99$52.81
100-249$50.46
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1MMBX
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2N
Connector Gender 2Female
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2Bulkhead
Connector Impedance 250 Ohm
RF Cable Part NumberRG174A/U
RF Cable TypeRG174
RF Cable Impedance50 Ohm


Snap-On MMBX Plug to N Female Bulkhead Cable 4 Inch Length Using RG174 Coax

PE3C4040-4 is a MMBX plug to N type female bulkhead cable using RG174 coax. This Pasternack MMBX plug to type N female bulkhead cable assembly uses a 50 Ohm MMBX for connector 1 and a 50 Ohm type N for connector 2.

Our plug MMBX to female type N bulkhead cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C4040-4 MMBX plug to N type female bulkhead cable assembly is constructed with RG174 coax and the maximum VSWR is 1.4:1.
