Type N Female to MMBX Plug Cable Assemblies

Check out our new RF calculators & conversion tools...

Snap-On MMBX Plug to N Female Bulkhead Cable Using RG316 Coax

Product ID: PE3C4023
Snap-On MMBX Plug to N Female Bulkhead Cable Using RG316 Coax

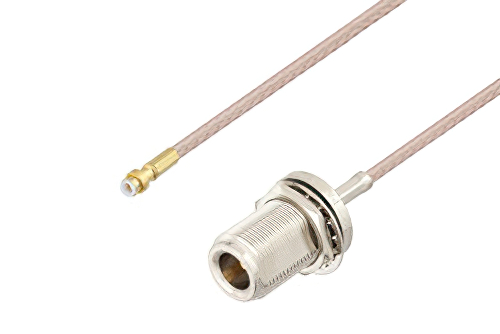

Image Views:  Snap-On MMBX Plug to N Female Bulkhead Cable Using RG316 Coax high resolution
Zoom


Click for:PE3C4023 Datasheet
Click for:PE3C4023 REACH Cert
Please Enter Length to Calculate Price
Standard Lengths
4 in.6 in.8 in.12 in.18 in.24 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1MMBX
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2N
Connector Gender 2Female
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2Bulkhead
Connector Impedance 250 Ohm
RF Cable Part NumberRG316/U
RF Cable TypeRG316
RF Cable Impedance50 Ohm


Snap-On MMBX Plug to N Female Bulkhead Cable Using RG316 Coax

PE3C4023 is a MMBX plug to type N female bulkhead cable using RG316 coax. This Pasternack MMBX plug to N type female bulkhead cable assembly uses a 50 Ohm MMBX for connector 1 and a 50 Ohm type N for connector 2.

Our plug MMBX to female type N bulkhead cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C4023 MMBX plug to N type female bulkhead cable assembly is constructed with RG316 coax and the maximum VSWR is 1.4:1.
