SMA Female to MMBX Plug Right Angle Cable Assemblies

Check out our new RF calculators & conversion tools...

Snap-On MMBX Plug Right Angle to SMA Female Bulkhead Cable Using RG316-DS Coax

Product ID: PE3C4052
Snap-On MMBX Plug Right Angle to SMA Female Bulkhead Cable Using RG316-DS Coax

Image Views:  Snap-On MMBX Plug Right Angle to SMA Female Bulkhead Cable Using RG316-DS Coax high resolution
Zoom


Click for:PE3C4052 Datasheet
Click for:PE3C4052 REACH Cert
Please Enter Length to Calculate Price
Standard Lengths
4 in.6 in.8 in.12 in.18 in.24 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1MMBX
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Angle 1Right Angle
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2SMA
Connector Gender 2Female
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2Bulkhead
Connector Impedance 250 Ohm
RF Cable Part NumberRG316-DS
RF Cable TypeRG316-DS
RF Cable Impedance50 Ohm

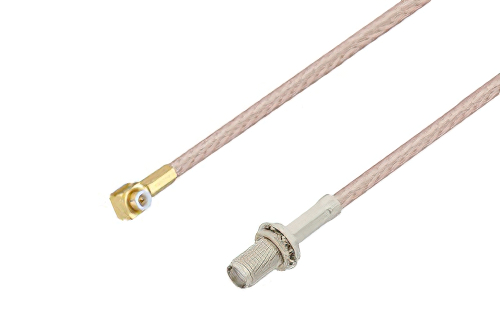

Snap-On MMBX Plug Right Angle to SMA Female Bulkhead Cable Using RG316-DS Coax

PE3C4052 is a MMBX plug right angle to SMA female bulkhead cable using RG316-DS coax. This Pasternack MMBX plug right angle to SMA female bulkhead cable assembly uses a 50 Ohm MMBX for connector 1 and a 50 Ohm SMA for connector 2. MMBX right angle to SMA coaxial cable assembly uses 90 degree right angle coax cable connector.

Our plug MMBX right angle to female SMA bulkhead cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C4052 MMBX plug right angle to SMA female bulkhead cable assembly is constructed with RG316-DS coax and the maximum VSWR is 1.4:1.
