Snap-On MMBX Plug to SMA Male Right Angle Cable Using RG178 Coax

Product ID: PE3C3997
Snap-On MMBX Plug to SMA Male Right Angle Cable Using RG178 Coax

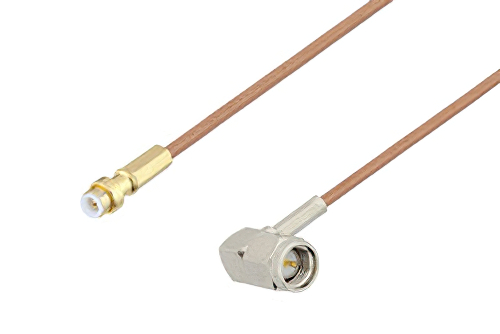

Image Views:  Snap-On MMBX Plug to SMA Male Right Angle Cable Using RG178 Coax high resolution
Zoom


Click for:PE3C3997 Datasheet
Click for:PE3C3997 REACH Cert
Please Enter Length to Calculate Price
Standard Lengths
4 in.6 in.8 in.12 in.18 in.24 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1MMBX
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2SMA
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Right Angle
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberRG178B/U
RF Cable TypeRG178
RF Cable Impedance50 Ohm


Snap-On MMBX Plug to SMA Male Right Angle Cable Using RG178 Coax

PE3C3997 is a MMBX plug to SMA male right angle cable using RG178 coax. This Pasternack MMBX plug to SMA male right angle cable assembly uses a 50 Ohm MMBX for connector 1 and a 50 Ohm SMA for connector 2. MMBX to SMA right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our plug MMBX to male SMA right angle cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C3997 MMBX plug to SMA male right angle cable assembly is constructed with RG178 coax and the maximum VSWR is 1.4:1.
