Snap-On MMBX Plug to SMA Male Right Angle Cable Using RG316 Coax

Product ID: PE3C4027
Snap-On MMBX Plug to SMA Male Right Angle Cable Using RG316 Coax

Image Views:  Snap-On MMBX Plug to SMA Male Right Angle Cable Using RG316 Coax high resolution
Zoom


Click for:PE3C4027 Datasheet
Click for:PE3C4027 REACH Cert
Please Enter Length to Calculate Price
Standard Lengths
4 in.6 in.8 in.12 in.18 in.24 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1MMBX
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2SMA
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Right Angle
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberRG316/U
RF Cable TypeRG316
RF Cable Impedance50 Ohm

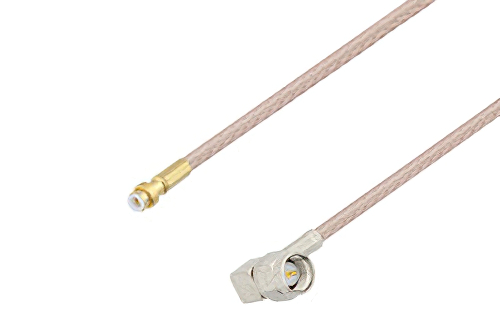

Snap-On MMBX Plug to SMA Male Right Angle Cable Using RG316 Coax

PE3C4027 is a MMBX plug to SMA male right angle cable using RG316 coax. This Pasternack MMBX plug to SMA male right angle cable assembly uses a 50 Ohm MMBX for connector 1 and a 50 Ohm SMA for connector 2. MMBX to SMA right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our plug MMBX to male SMA right angle cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C4027 MMBX plug to SMA male right angle cable assembly is constructed with RG316 coax and the maximum VSWR is 1.4:1.
