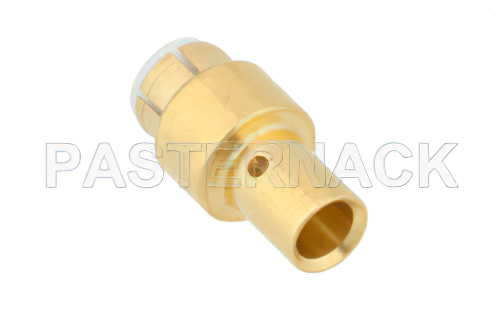

MMBX Plug Snap-On Connector Solder/Non-Solder Contact Attachment for RG405, PE-SR405FL, PE-SR405FLJ, With Male Center Contact

Name: MMBX Plug Snap-On Connector Solder/Non-Solder Contact Attachment for RG405, PE-SR405FL, PE-SR405FLJ, With Male Center Contact
Brand: Pasternack
SKU: PE45253
Availability: InStock

Product ID: PE45253

Pricing

Quantity	Price
1-24	$28.39
25-49	$26.97
50-99	$25.55
100-249	$24.42
250+	Call Us

* All Prices are in US Dollars and do not include duties

Buy

How many?

Available Quantity: 2

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties

View
Datasheet

3D CAD
Model
(.step)

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Polarity	Standard
Connector Series	MMBX
Connector Gender	Plug
Impedance	50 Ohm
Body Style	Straight
Attachment Method	Solder/Non-Solder Contact
Mount Method	None
Minimum Frequency	DC
Maximum Frequency	12.4 GHz
Interface Type 1	RG405
Interface Type 2	PE-SR405FL
Interface Type 3	PE-SR405FLJ

Description

MMBX Plug Snap-On Connector Solder/Non-Solder Contact Attachment for RG405, PE-SR405FL, PE-SR405FLJ, With Male Center Contact

PE45253 MMBX plug coaxial snap-on connector has an interface type of RG405, PE-SR405FL, PE-SR405FLJ and a 50 Ohm impedance. Pasternack MMBX plug connector uses shield/contact solder/non-solder contact as an attachment method. Our plug MMBX coaxial connector provides a minimum frequency of DC and a maximum frequency of 12.4 GHz.

The Pasternack MMBX plug coaxial snap-on connector has a PTFE dielectric type and a VSWR of 1.22. The Pasternack MMBX coaxial connector has a brass body with gold plating. Our PE45253 MMBX connector uses beryllium copper contact and a gold plating material. This MMBX plug coaxial snap-on RF connector is RoHS and REACH compliant.

This Pasternack plug MMBX connector will ship the same day as purchased. Our MMBX plug connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom MMBX connector cable assemblies that will ship the same day as well.
