MMBX Plug Right Angle Connectors

Check out our new RF calculators & conversion tools...

MMBX Plug Right Angle Snap-On Connector Solder Attachment for RG405, PE-SR405FL, PE-SR405FLJ, With Male Center Contact

Product ID: PE45257
MMBX Plug Right Angle Snap-On Connector Solder Attachment for RG405, PE-SR405FL, PE-SR405FLJ, With Male Center Contact

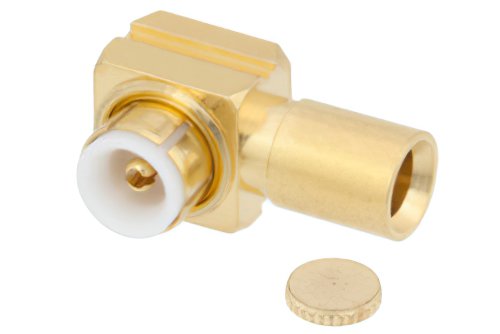

Image Views:  MMBX Plug Right Angle Snap-On Connector Solder Attachment for RG405, PE-SR405FL, PE-SR405FLJ, With Male Center Contact high resolution
Zoomalternate image
View 2


Click for:PE45257 Datasheet
Click for:PE45257 RoHS Cert
Click for:PE45257 REACH Cert
Available Quantity: 69
Pricing Table
QUANTITYPRICE
1-24$15.86
25-49$14.75
50-99$13.64
100-249$12.69
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesMMBX
Connector GenderPlug
Impedance50 Ohm
Body StyleRight Angle
Attachment MethodSolder/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency12.4 GHz


MMBX Plug Right Angle Snap-On Connector Solder Attachment for RG405, PE-SR405FL, PE-SR405FLJ, With Male Center Contact

PE45257 MMBX plug right angle coaxial snap-on connector has an interface type of RG405, PE-SR405FL, PE-SR405FLJ and a 50 Ohm impedance. Pasternack MMBX plug connector uses shield/contact solder/solder as an attachment method. Our plug MMBX right angle coaxial connector provides a minimum frequency of DC and a maximum frequency of 12.4 GHz.

The Pasternack right angle MMBX plug coaxial snap-on connector has a ptfe dielectric type and a VSWR of 1.2. The Pasternack MMBX coaxial connector has a brass body with gold plating. Our PE45257 MMBXright angle connector uses beryllium copper contact and a gold plating material. This MMBX plug right angle coaxial snap-on RF connector is REACH compliant.

This Pasternack right angle plug MMBX connector will ship the same day as purchased. Our MMBX right angle plug connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom MMBX connector cable assemblies that will ship the same day as well.
