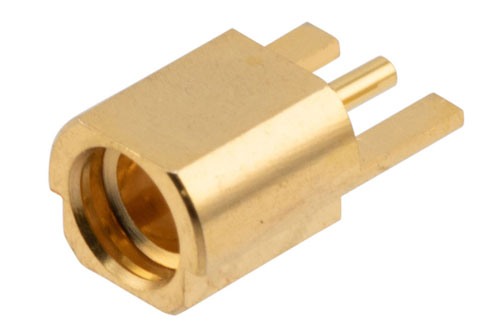

PE51703 MMCX jack PCB connector has an interface type of MMCX jack which is compatible with end launch cables and has an impedance of 50 Ohms. Pasternack's MMCX jack connector uses solder as an attachment method. Our jack MMCX PCB connector provides a maximum frequency of 6 GHz. Our high-quality radio frequency co-axial connector is used for general purpose test and printed circuit board applications. This MMCX jack RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online Cable Creator.
The Pasternack MMCX jack PCB connector has a PTFE dielectric type. Pasternack's MMCX PCB connector has a brass body with gold over nickel over copper plating. Our PE51703 MMCX connector uses a gold over nickel over copper-plated phosphor bronze contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
This MMCX connector has a gold over nickel over copper inner contact plating. Our MMCX jack connector has a length of 0.3 inches, a width of 0.18 inches, and a weight of 0.2 lbs.
This Pasternack commercial grade jack MMCX connector will ship the same business day as purchased. Our MMCX jack connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
