MMCX to MCX Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

MMCX Jack to MCX Jack Adapter

Product ID: PE9526

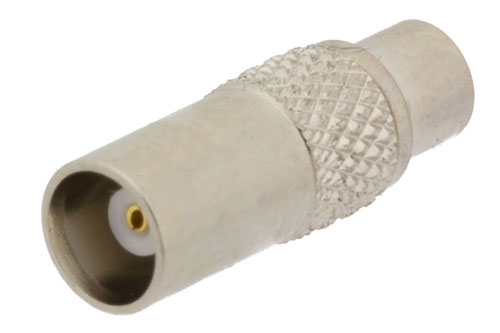

MMCX Jack to MCX Jack Adapter

Image Views:  MMCX Jack to MCX Jack Adapter high resolution
Zoom


Click for:PE9526 Datasheet
Click for:PE9526 RoHS Cert
Click for:PE9526 REACH Cert
Available Quantity: 22
Pricing Table
QUANTITYPRICE
1-24$102.71
25-49$97.57
50-99$92.44
100-249$88.33
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1MMCX
Connector Gender 1Jack
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2MCX
Connector Gender 2Jack
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Body Material 1Brass
Connector Body Plating 1Nickel
Connector Mount Method 2None
Connector Body Material 2Brass
Connector Body Plating 2Nickel


MMCX Jack to MCX Jack Adapter

MMCX adapter PE9526 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our MMCX to MCX adapter is a between series coaxial adapter design. This 50 Ohm MMCX adapter is precision manufactured to RF components industry specifications.

MMCX jack to MCX jack adapter is one of the many RF components that ship same day as they are ordered. PE9526 jack MMCX to jack MCX adapter has a straight body. This Pasternack straight MMCX coax adapter is a in-line RF adapter.

Our jack MMCX to jack MCX adapter PE9526 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This MMCX to MCX radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
