MMCX Jack Connector Solder Attachment for PE-047SR, PE-SR047AL, PE-SR047FL

Name: MMCX Jack Connector Solder Attachment for PE-047SR, PE-SR047AL, PE-SR047FL
Brand: Pasternack
SKU: PE44459

Product ID: PE44459

Pricing

Quantity	Price
1-24	$40.39
25-49	$38.37
50-99	$36.35
100-249	$34.74
250+	Call Us

* All Prices are in US Dollars and do not include duties

Buy

How many?

Available Quantity: 92

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties

View
Datasheet

3D CAD
Model
(.step)

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Polarity	Standard

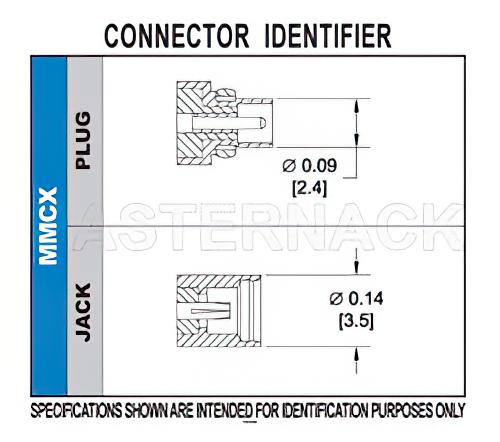

Connector Series	MMCX
Connector Gender	Jack
Impedance	50 Ohm
Body Style	Straight
Attachment Method	Solder
Mount Method	None
Minimum Frequency	DC
Maximum Frequency	6 GHz
Interface Type 1	PE-047SR
Interface Type 2	PE-SR047AL
Interface Type 3	PE-SR047FL

Description

MMCX Jack Connector Solder Attachment for PE-047SR, PE-SR047AL, PE-SR047FL

PE44459 MMCX jack coaxial connector has an interface type of PE-047SR, PE-SR047AL, PE-SR047FL and a 50 Ohm impedance. Pasternack MMCX jack connector uses shield/contact solder as an attachment method. Our jack MMCX coaxial connector provides a minimum frequency of DC and a maximum frequency of 6 GHz.

The Pasternack MMCX jack coaxial connector has a PTFE dielectric type. The Pasternack MMCX coaxial connector has a brass body with gold plating. Our PE44459 MMCX connector uses beryllium copper contact. This MMCX jack coaxial RF connector is RoHS and REACH compliant.

This Pasternack jack MMCX connector will ship the same day as purchased. Our MMCX jack connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom MMCX connector cable assemblies that will ship the same day as well.
