MMCX Jack Straight Connectors

Check out our new RF calculators & conversion tools...

MMCX Jack Connector Crimp/Solder Attachment for RG178, RG196

Product ID: PE4902
MMCX Jack Connector Crimp/Solder Attachment for RG178, RG196

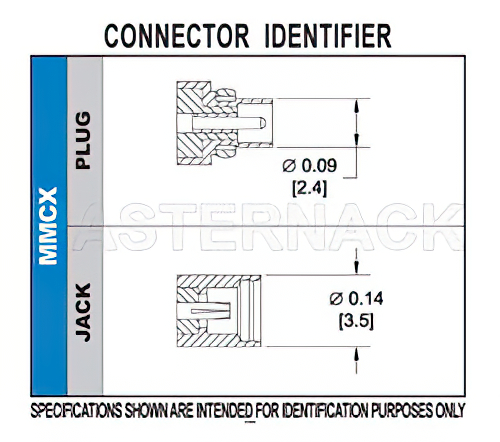

Image Views:  MMCX Jack Connector Crimp/Solder Attachment for RG178, RG196 high resolution
Zoomalternate image
View 2


Click for:PE4902 Datasheet
Available Quantity: 2,493
Pricing Table
QUANTITYPRICE
1-24$16.31
25-49$15.49
50-99$14.68
100-249$14.03
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesMMCX
Connector GenderJack
Impedance50 Ohm
Body StyleStraight
Attachment MethodCrimp/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency3 GHz


MMCX Jack Connector Crimp/Solder Attachment for RG178, RG196

PE4902 MMCX jack coaxial connector has an interface type of RG178, RG196 and a 50 Ohm impedance. Pasternack MMCX jack connector uses shield/contact crimp/solder as an attachment method. Our jack MMCX coaxial connector provides a minimum frequency of DC and a maximum frequency of 3 GHz.

The Pasternack MMCX jack coaxial connector has a ptfe dielectric type and a VSWR of 1.22. The Pasternack MMCX coaxial connector has a brass body with gold plating. Our PE4902 MMCX connector uses beryllium copper contact. This MMCX jack coaxial RF connector is RoHS and REACH compliant.

This Pasternack jack MMCX connector will ship the same day as purchased. Our MMCX jack connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom MMCX connector cable assemblies that will ship the same day as well.
