MMCX Jack Straight Connectors

Check out our new RF calculators & conversion tools...

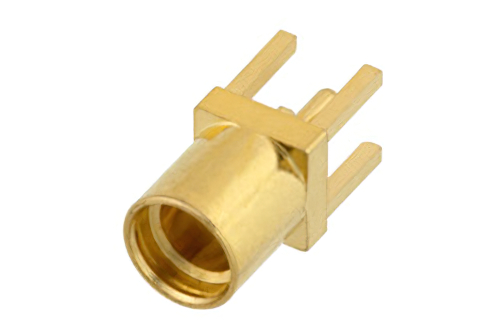

MMCX Jack Connector Solder Attachment Thru Hole PCB, .100 inch x .031 inch Hole Spacing

Product ID: PE4904
MMCX Jack Connector Solder Attachment Thru Hole PCB, .100 inch x .031 inch Hole Spacing


Image Views:  MMCX Jack Connector Solder Attachment Thru Hole PCB, .100 inch x .031 inch Hole Spacing high resolution
Zoomalternate image
View 2


Click for:PE4904 Datasheet
Available Quantity: 10,829
Pricing Table
QUANTITYPRICE
1-24$13.92
25-49$13.22
50-99$12.53
100-249$11.97
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesMMCX
Connector GenderJack
Impedance50 Ohm
Body StyleStraight
Attachment MethodSolder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency6 GHz


MMCX Jack Connector Solder Attachment Thru Hole PCB, .100 inch x .031 inch Hole Spacing

PE4904 MMCX jack pcb connector has an interface type of thru hole and a 50 Ohm impedance. Pasternack MMCX jack connector uses shield/contact solder as an attachment method. Our jack MMCX pcb connector provides a minimum frequency of DC and a maximum frequency of 6 GHz.

The Pasternack MMCX jack pcb connector has a ptfe dielectric type and a VSWR of 1.22. The Pasternack MMCX pcb connector has a brass body with gold plating. Our PE4904 MMCX connector uses beryllium copper contact. This MMCX jack pcb RF connector is RoHS and REACH compliant.

This Pasternack jack MMCX connector will ship the same day as purchased. Our MMCX jack connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom MMCX connector cable assemblies that will ship the same day as well.
