MMCX to BNC Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

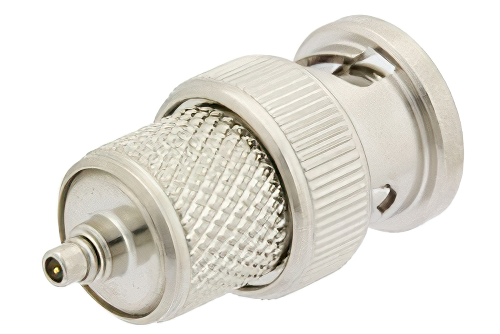

MMCX Plug to BNC Male Adapter

Product ID: PE9517
MMCX Plug to BNC Male Adapter

Image Views:  MMCX Plug to BNC Male Adapter high resolution
Zoom


Click for:PE9517 Datasheet
Click for:PE9517 RoHS Cert
Click for:PE9517 REACH Cert
Available Quantity: 21
Pricing Table
QUANTITYPRICE
1-24$100.70
25-49$93.65
50-99$86.60
100-249$80.56
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1MMCX
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Body Material 1Brass
Connector Body Plating 1Nickel
Connector Mount Method 2None
Connector Body Material 2Brass
Connector Body Plating 2Nickel


MMCX Plug to BNC Male Adapter

MMCX adapter PE9517 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our MMCX to BNC adapter is a between series coaxial adapter design. This 50 Ohm MMCX adapter is precision manufactured to RF components industry specifications.

MMCX plug to BNC male adapter is one of the many RF components that ship same day as they are ordered. PE9517 plug MMCX to male BNC adapter has a straight body. This Pasternack straight MMCX coax adapter is a in-line RF adapter.

Our plug MMCX to male BNC adapter PE9517 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This MMCX to BNC radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
