MMCX Plug to MMCX Plug Cable Assemblies

Check out our new RF calculators & conversion tools...

MMCX Plug to MMCX Plug Cable Using RG188 Coax

Product ID: PE34885

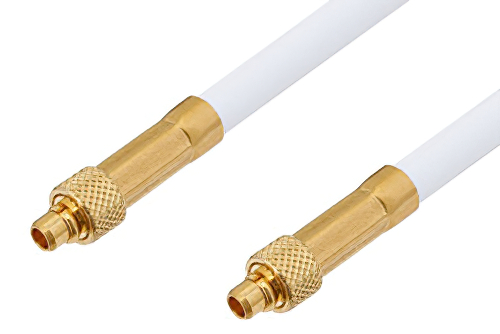

MMCX Plug to MMCX Plug Cable Using RG188 Coax

Image Views:  MMCX Plug to MMCX Plug Cable Using RG188 Coax high resolution
Zoom


Click for:PE34885 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1MMCX
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2MMCX
Connector Gender 2Plug
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG188A/U
RF Cable TypeRG188
RF Cable Impedance50


MMCX Plug to MMCX Plug Cable Using RG188 Coax

PE34885 is a MMCX plug to MMCX plug cable using RG188 coax. This Pasternack MMCX plug to MMCX plug cable assembly uses a 50 Ohm MMCX for connector 1 and a 50 Ohm MMCX for connector 2.

Our plug MMCX to plug MMCX cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE34885 MMCX plug to MMCX plug cable assembly is constructed with RG188 coax and the maximum VSWR is 1.4:1.
