Pasternack’s PE3C0064/HS low loss right angle MMCX plug to SMA female 4 hole flange mount RF cable assembly using LMR-100A coax is part of one of the largest selections of same-day ship coaxial cables for RF, microwave, and millimeter wave interconnect solutions. These coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, defense/military, telecom antenna tower component jumper connection, production environments, low loss, general use, etc. The MMCX plug to SMA female cable, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom MMCX to SMA cable assembly orders will ship the same business day as well.

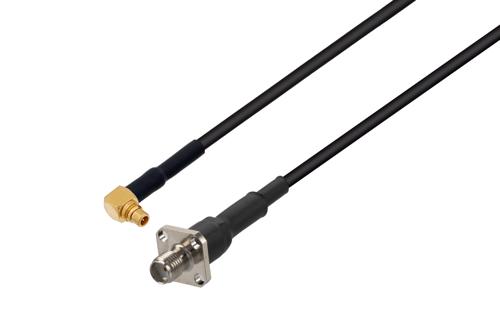

Pasternack RF coax low loss cable assembly is built with a right angle MMCX cable connection on one end and an SMA 4 hole flange mount cable connection on the other. Our MMCX to SMA cable assembly has a plug gender on end 1 and a female on end 2. PE3C0064/HS can also be known as a low loss right angle MMCX male to SMA jack cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.5-inch diameter has copper clad steel as the cable’s inner conducting material and PE dielectric type.
This cable assembly employs durable and flexible materials, and with a 1-inch bend radius, it can withstand repetitive movements, ensuring reliable performance over extended periods. Our PE3C0064/HS RF cable has a pvc jacket of 0.110-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -40 to 85 degrees C. The flexible RF cable has a between series connection. This cable assembly has a typical propagation velocity of 66% and a minimum RF shielding of 90 dB.
This PE3C0064/HS MMCX male to SMA jack cable assembly is built with LMR-100A, which is a flexible coax type. The Pasternack flexible MMCX cable assembly is manufactured with right angle MMCX to SMA cable connectors, has a 50 Ohm impedance, and is double shielded. One connector features the crimp/solder attachment method and a brass body with gold plating, while the other has the clamp/solder attachment method and a brass body with nickel plating. Additional dimensions, specifications, and CAD drawings for this low loss RF cable are available on our downloadable PDF datasheet. PE3C0064/HS can also be used in the other direction and will be an SMA female 4 hole flange mount to right angle MMCX plug cable assembly if the opposite connectivity is required.
This low loss MMCX right angle male to SMA jack 4 hole flange mount cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality MMCX to SMA cable assembly for quick shipment worldwide. Variations of MMCX and SMA cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High-quality custom RF cable assembly products for microwave and millimeter wave radio transmitters, receivers, antenna jumpers, component interconnections, RF test and measurement labs, military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment, and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal MMCX to SMA low loss RF cable assembly as per your requirements.LMR® is a registered trademark of Times Microwave Systems.
