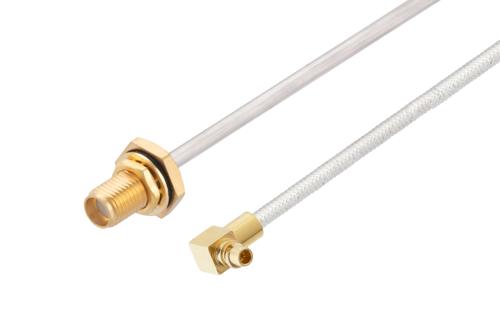

Radio frequency assembly MMCX plug right angle to SMA female bulkhead cable using PE-SR405AL coax from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The MMCX plug right angle to SMA female bulkhead cable using PE-SR405AL coax, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom MMCX to SMA cable assembly orders will ship the same business day as well.
Pasternack RF coax cable assembly is built with a right angle MMCX cable connection on one end and a SMA bulkhead cable connection on the other. Our right angle MMCX to SMA cable assembly has a plug gender on end 1 and a female on end 2. PE3W14462 can also be known as a right angle MMCX male to SMA jack cable assembly and will be shipped the same day as it is purchased. This semi-rigid RF cable assembly with a 0.5-inch diameter has copper clad steel as the cable's inner conducting material and PTFE dielectric type.
The minimum bend radius for this cable is 0.05 inches, allowing for a single bend without damaging the cable. The semi-rigid RF cable has a between series connection. Our right angle MMCX plug to bulkhead SMA female cable has a maximum VSWR of 1.4:1.
MMCX male to SMA jack cable assembly PE3W14462 is built with PE-SR405AL which is a semi-rigid coax type. The Pasternack semi-rigid MMCX cable assembly is manufactured with right angle MMCX to SMA cable connectors, has a 50 Ohm impedance, and is single shielded. Both the connectors have a solder/solder attachment method. Additional dimensions, specifications and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE3W14462 can also be used in the other direction and will be a SMA female bulkhead to right angle MMCX plug cable assembly if the opposite connectivity is required.
MMCX right angle male to SMA jack bulkhead cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality MMCX to SMA cable assembly for quick shipment worldwide. Variations of MMCX and SMA cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal MMCX to SMA RF cable assembly as per your requirements.
