Radio frequency assembly MMCX plug right angle to SMB jack bulkhead cable using RG178 coax from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The MMCX plug right angle to SMB jack bulkhead cable using RG178 coax, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom MMCX to SMB cable assembly orders will ship the same business day as well.

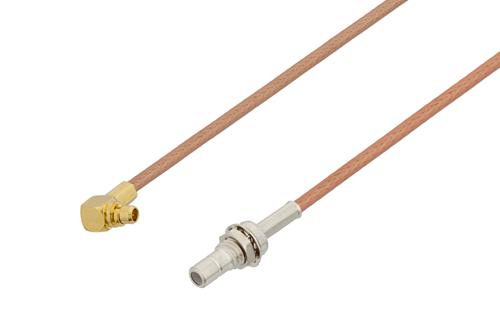

Pasternack RF coax cable assembly is built with a right angle MMCX cable connection on one end and a SMB bulkhead cable connection on the other. Our right angle MMCX to SMB cable assembly has a plug gender on end 1 and a jack on end 2. PE37733 can also be known as a right angle MMCX male to SMB female cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.5-inch diameter has copper clad steel as the cable's inner conducting material and PTFE dielectric type.
This cable assembly employs durable and flexible materials, and with a 0.393-inch bend radius, it can withstand repetitive movements, ensuring reliable performance over extended periods. Our PE37733 RF cable has a FEP jacket of 0.072-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -40 to 60 degrees C. The flexible RF cable has a between series connection. Our right angle MMCX plug to bulkhead SMB jack cable has a maximum VSWR of 1.4:1.
MMCX male to SMB female cable assembly PE37733 is built with RG178 which is a flexible coax type. The Pasternack flexible MMCX cable assembly is manufactured with right angle MMCX to SMB cable connectors, has a 50 Ohm impedance, and is single shielded. Both the connectors have a crimp/solder attachment method and a brass body. Additional dimensions, specifications and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE37733 can also be used in the other direction and will be a SMB jack bulkhead to right angle MMCX plug cable assembly if the opposite connectivity is required.
MMCX right angle male to SMB female bulkhead cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality MMCX to SMB cable assembly for quick shipment worldwide. Variations of MMCX and SMB cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal MMCX to SMB RF cable assembly as per your requirements.
