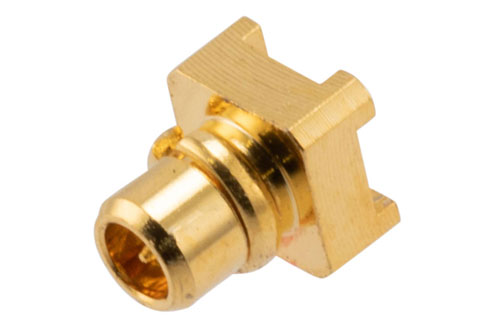

PE51705 MMCX plug PCB connector has an interface type of MMCX plug which is compatible with surface mount cables and has an impedance of 50 Ohms. Pasternack's MMCX plug connector uses solder as an attachment method. Our plug MMCX PCB connector provides a maximum frequency of 6 GHz. Our high-quality radio frequency co-axial connector is used for general purpose test and printed circuit board applications. This MMCX plug RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online Cable Creator.
The Pasternack MMCX plug PCB connector has a PTFE dielectric type and a VSWR of 1.15:1. Pasternack's MMCX PCB connector has a brass body with gold plating. Our PE51705 MMCX connector uses a gold-plated beryllium copper contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The PE51705 MMCX commercial grade connector operates at a temperature range of -55 to 155 deg C. This MMCX connector has a gold inner contact plating and a nickel outer contact plating. The Pasternack commercial grade MMCX plug connector has a maximum operating voltage of 170 Vrms and a dielectric withstanding voltage of 250 Vrms. This PCB RF connector comes with a minimum insulation resistance of 1,000 MOhms. Our MMCX plug connector has a length of 0.18 inches, a width of 0.14 inches, and a weight of 0.2 lbs.
This Pasternack commercial grade plug MMCX connector will ship the same business day as purchased. Our MMCX plug connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
