SPDT Electromechanical Relay Failsafe Switch, DC to 4 GHz, up to 550W, 28V, N

Product ID: PE7147
SPDT Electromechanical Relay Failsafe Switch, DC to 4 GHz, up to 550W, 28V, N

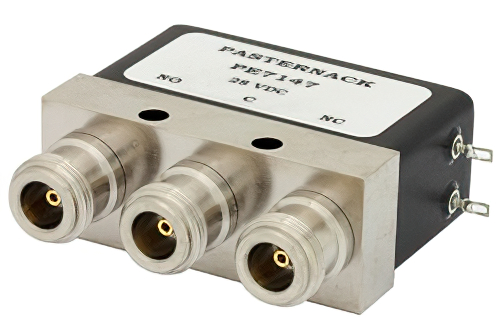

Image Views:  SPDT Electromechanical Relay Failsafe Switch, DC to 4 GHz, up to 550W, 28V, N high resolution
Zoomalternate image
View 2


Click for:PE7147 Datasheet
Click for:PE7147 RoHS Cert
Click for:PE7147 REACH Cert
Available Quantity: 41
Pricing Table
QUANTITYPRICE
1-1$429.00
2-4$403.26
5-9$381.81
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector SeriesN
Connector GenderFemale
Switch DesignSPDT
Minimum FrequencyDC
Maximum Frequency4 GHz
Impedance50 Ohm
Maximum Input Power275 Watts
Maximum VSWR1.3:1
Maximum Insertion Loss0.25 dB
Minimum Isolation70 dB


N Electro Mechanical SPDT Switch From DC To 4 GHz Rated To 275 Watts And 22 Volts To 32 Volts With F Features

PE7147 electromechanical RF relay switch from Pasternack is a SPDT design. Our SPDT electromechanical RF switch uses N connectors at 50 Ohm. This N RF relay SPDT switch has a maximum frequency of 4 GHz and maximum power of 275 Watts. The Pasternack radio frequency SPDT N electro-mechanical relay switch is rated at a control voltage of 22 Volts, indicator voltage 32 and switching speed of 20ms.

N SPDT electro mechanical RF relay switch features Failsafe with an isolation minimum of 70 dB. SPDT electromechanical relay radio frequency switch PE7147 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our SPDT N coaxial RF relay electromechanical switch can ship worldwide the same day that it is bought as with our other available RF parts.
