N Female Straight Connectors

Check out our new RF calculators & conversion tools...

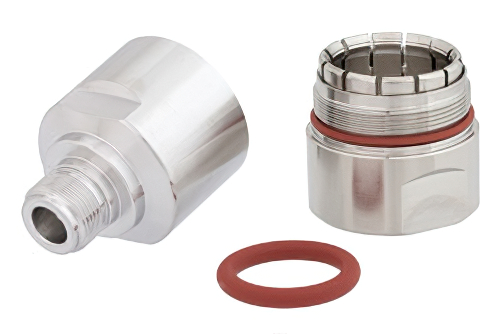

N Female Connector Clamp/Non-Solder Contact Attachment for 7/8 inch Helical

Product ID: PE45203
N Female Connector Clamp/Non-Solder Contact Attachment for 7/8 inch Helical

Image Views:  N Female Connector Clamp/Non-Solder Contact Attachment for 7/8 inch Helical high resolution
Zoom


Click for:PE45203 Datasheet
Click for:PE45203 RoHS Cert
Click for:PE45203 REACH Cert
Available Quantity: 65
Pricing Table
QUANTITYPRICE
1-24$48.62
25-49$45.22
50-99$41.81
100-249$38.90
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesN
Connector GenderFemale
Impedance50 Ohm
Body StyleStraight
Attachment MethodClamp/Non-Solder Contact
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency3 GHz


N Female Connector Clamp/Non-Solder Contact Attachment for 7/8 inch Helical

PE45203 type N female coaxial connector has an interface type of 7/8 inch Helical and a 50 Ohm impedance. Pasternack type N female connector uses shield/contact clamp/non-solder contact as an attachment method. Our female type N coaxial connector provides a minimum frequency of DC and a maximum frequency of 3 GHz.

The Pasternack N type female coaxial connector has a tpx dielectric type and a VSWR of 1.1. The Pasternack N type coaxial connector has a brass body with tri-metal plating. Our PE45203 N type connector uses copper contact and a tri-metal plating material. This type N female coaxial RF connector is RoHS and REACH compliant.

This Pasternack female type N connector will ship the same day as purchased. Our type N female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom N type connector cable assemblies that will ship the same day as well.
