N Female Bulkhead to BNC Male Cable Using RG316 Coax
Product ID:
PE3C3416
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
* All cable assembly length tolerance are as provided on the datasheet.
If not provided, cable length tolerances are within the IPC standards (2022-24) as shown
here.
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Connector Series 1 | N |
| Connector Gender 1 | Female |
| Connector Polarity 1 | Standard |
| Connector Angle 1 | Straight |
| Connector Mount Method 1 | Bulkhead |
| Connector Impedance 1 | 50 |
| Connector Series 2 | BNC |
| Connector Gender 2 | Male |
| Connector Polarity 2 | Standard |
| Connector Angle 2 | Straight |
| Connector Mount Method 2 | None |
| Connector Impedance 2 | 50 |
| RF Cable Part Number | RG316/U |
| RF Cable Type | RG316 |
| RF Cable Impedance | 50 |
Description
N Female Bulkhead to BNC Male Cable Using RG316 Coax, RoHS

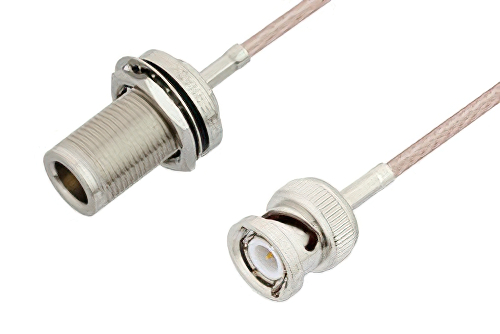

PE3C3416 is a N type female bulkhead to BNC male cable using RG316 coax. This Pasternack type N female bulkhead to BNC male cable assembly uses a 50 Ohm type N for connector 1 and a 50 Ohm BNC for connector 2.
Our female type N bulkhead to male BNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3C3416 N type female bulkhead to BNC male cable assembly is constructed with RG316 coax and the maximum VSWR is 1.4:1.
