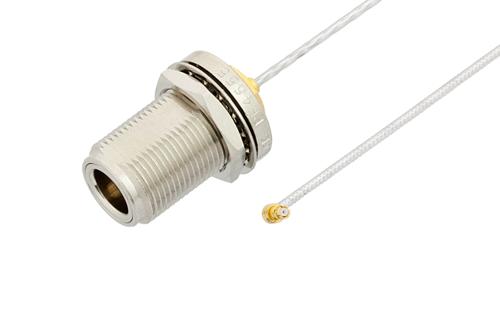

Radio frequency assembly N female bulkhead to SMP female right angle cable using PE-SR405FL coax from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The N female bulkhead to SMP female right angle cable using PE-SR405FL coax, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom type N to SMP cable assembly orders will ship the same business day as well.
Pasternack RF coax cable assembly is built with a type N bulkhead cable connection on one end and a right angle SMP cable connection on the other. Our type N to right angle SMP cable assembly has a female gender on end 1 and a female on end 2. PE3C5494 can also be known as a type N jack to right angle SMP jack cable assembly and will be shipped the same day as it is purchased. This formable RF cable assembly with a 0.5-inch diameter has copper clad steel as the cable's inner conducting material and PTFE dielectric type.
This cable assembly employs durable and flexible materials, and with a 0.78-inch bend radius, it can withstand repetitive movements, ensuring reliable performance over extended periods. The formable RF cable has a between series connection. Our bulkhead type N female to right angle SMP female cable has a maximum VSWR of 1.4:1.
Type N jack to SMP jack cable assembly PE3C5494 is built with PE-SR405FL which is a formable coax type. The Pasternack formable type N cable assembly is manufactured with type N to right angle SMP cable connectors, has a 50 Ohm impedance, and is single shielded. Both the connectors have a solder/solder attachment method. Additional dimensions, specifications and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE3C5494 can also be used in the other direction and will be a right angle SMP female to type N female bulkhead cable assembly if the opposite connectivity is required.
Type N jack bulkhead to SMP right angle jack cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality type N to SMP cable assembly for quick shipment worldwide. Variations of type N and SMP cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal type N to SMP RF cable assembly as per your requirements.
