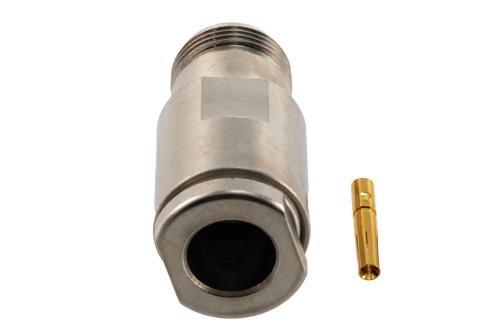

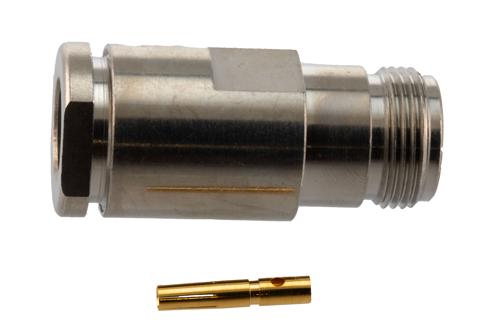

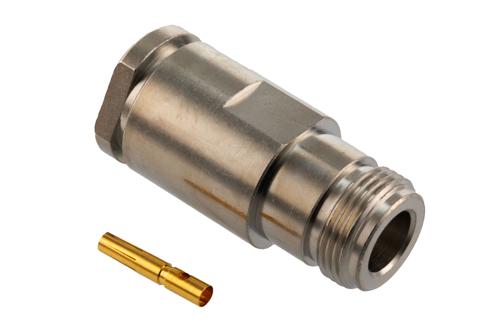

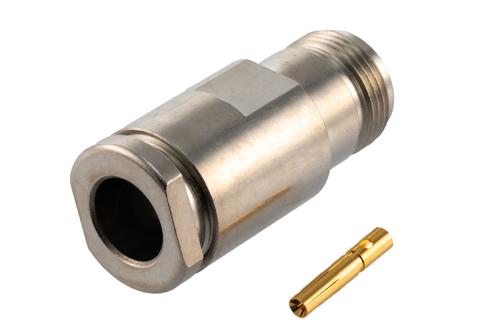

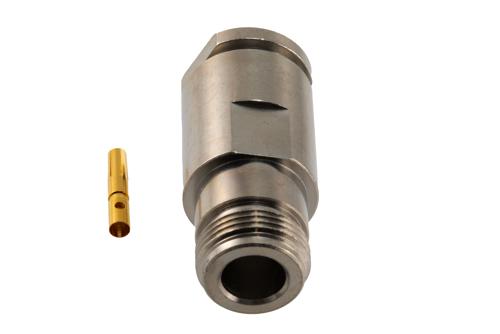

PE51766 Type N female coaxial connector has an interface type of Type N female which is compatible with LMR-400-FR, LMR-LW400, TCOM-400, LMR-400-LLPX, PE-B400, PE-B405, PE-C400, LMR-400, LMR-400-DB and LMR-400-UF cables and has an impedance of 50 Ohms. Pasternack’s Type N female connector uses clamp/solder as an attachment method. Our female Type N coaxial connector provides a maximum frequency of 2 GHz. This Type N female RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online cable creator.
The Pasternack Type N female coaxial connector has a teflon dielectric type and a VSWR of 1.25:1. Pasternack’s Type N coaxial connector has a brass body with copper-tin-zinc alloy plating. Our PE51766 Type N connector uses a gold over nickel over copper-plated phosphor bronze contact. The Pasternack RF connector has a maximum inner and outer conductor resistance of 1.5 mOhms and 1 mOhm respectively. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector made from brass material has a contact life of 500 cycles or more. The PE51766 Type N connector operates at a temperature range of -65 to 165 deg C. This threaded female Type N coaxial RF connector has a maximum insertion loss of 0.07 dB. This Type N connector has a gold over nickel over copper inner contact plating. The Pasternack Type Nfemale connector has a maximum operating voltage of 1,000 Vrms and a dielectric withstanding voltage of 2,500 Vrms. This coaxial RF connector comes with a minimum insulation resistance of 5,000 MOhms. Our Type N female connector has a length of 1.425 inches, a width of 0.748 inches, and a weight of 0.115 lbs.
This Pasternack female Type N connector will ship the same business day as purchased. Our Type Nfemale connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
* LMR® is a registered trademark of Times Microwave Systems.
