HMCX32 1.2 Plug to Type N Female Cable Assemblies

Check out our new RF calculators & conversion tools...

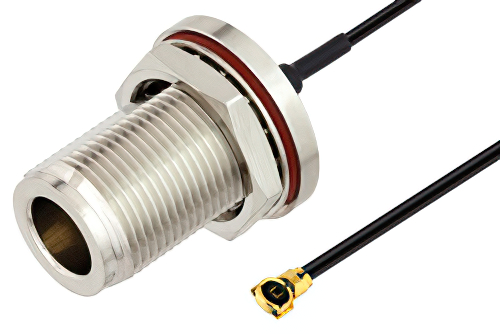

N Female Bulkhead to HMCX32 1.2 Plug Cable Using 0.81mm Coax, RoHS

Product ID: PE3CA1015
N Female Bulkhead to HMCX32 1.2 Plug Cable Using 0.81mm Coax, RoHS

Image Views:  N Female Bulkhead to HMCX32 1.2 Plug Cable Using 0.81mm Coax, RoHS high resolution
Zoom


Click for:PE3CA1015 Datasheet
Click for:PE3CA1015 RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
3 in.6 in.12 in.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1N
Connector Gender 1Female
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1Bulkhead
Connector Impedance 150
Connector Series 2HMCX32 1.2
Connector Gender 2Plug
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-81mm
RF Cable Type0.81mm
RF Cable Impedance50


N Female Bulkhead to HMCX32 1.2 Plug Cable Using 0.81mm Coax, RoHS

PE3CA1015 is a type N female bulkhead to HMCX32 1.2 plug cable using 0.81mm coax. This Pasternack N type female bulkhead to HMCX32 1.2 plug cable assembly uses a 50 Ohm type N for connector 1 and a 50 Ohm HMCX32 1.2 for connector 2.

Our female type N bulkhead to plug HMCX32 1.2 cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3CA1015 N type female bulkhead to HMCX32 1.2 plug cable assembly is constructed with 0.81mm coax and the maximum VSWR is 1.35:1.
