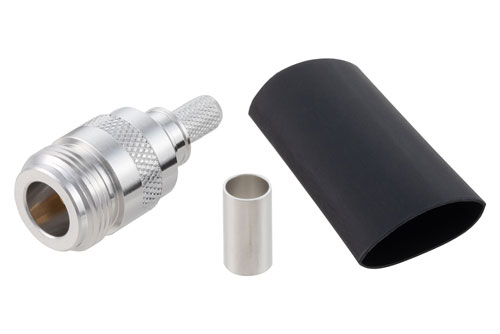

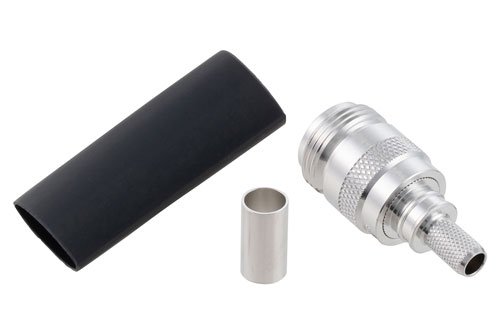

EZ-240-NF-X type N female coaxial connector has an interface type of type N female LMR-240, LMR-240-DB, LMR-240-UF, LMR-240-FR, RG8X and PE-C240 and a 50 Ohm impedance. Pasternack's type N female connector uses crimp/non-solder contact as an attachment method. Our female type N coaxial connector provides a maximum frequency of 6 GHz.
The Pasternack type N female coaxial connector has a teflon dielectric type and a VSWR of 1.3:1. Pasternack's type N coaxial connector has a brass body with tri-metal plating. Our EZ-240-NF-X type N connector uses gold over nickel-plated phosphor bronze contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector is made from brass material and has a contact life of 500 cycles or more. Our high-quality EZ-240-NF-X features an 80 µin minimum body plating specification. The EZ-240-NF-X type N connector operates at a temperature range of -55 to 155 deg C.
This Pasternack female type N connector will ship the same business day as purchased. Our type N female connector is part of RF, microwave and millimeter wave components in stock for worldwide shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
*LMR™ is a Trademark of Times Microwave
