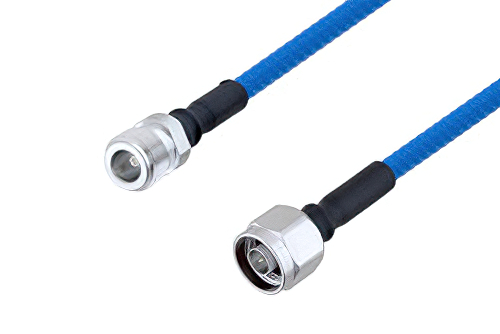

Plenum N Female to N Male Low PIM Cable 60 Inch Length Using SPP-250-LLPL Coax , LF Solder

Product ID: PE3C4138-60

Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

Pricing

QuantityPrice
1-24$142.99
25-49$135.84
50-99$128.69
100+Call Us

* All Prices are in US Dollars and do not include duties

Buy

Available Quantity: 63
Shipping Truck
Same-Day Shipping!
Order in the next hours!
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
* All cable assembly length tolerance are as provided on the datasheet. If not provided, cable length tolerances are within the IPC standards (2022-24) as shown here.
* All Prices are in US Dollars and do not include duties

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1N
Connector Gender 1Female
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2N
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberSPP-250-LLPL
RF Cable TypeSPP-250-LLPL
RF Cable Impedance50 Ohm
Length60 inches

Description

Plenum N Female to N Male Low PIM Cable 60 Inch Length Using SPP-250-LLPL Coax , LF Solder

The PE3C4138-60 is an N female to N Male RF cable designed for SPP-250-LLPL coax, offering 50 Ohm impedance and DC to 6 GHz operation. It supports RF interconnects in base station jumper runs, distributed antenna systems, and general electronic integration that require low PIM cable performance. Brass connector bodies, silver-plated Beryllium Copper contacts, PTFE dielectrics, and an FEP jacket support operation from -55°C to 200°C.

Pasternack RF coax low PIM cable assembly is built with type N cable connection on one end and type N cable connection on the other. Our low PIM N type to type N cable assemblies have a female gender on end 1 and male on end 2. This type N to type N cable is a female to male coax assembly, PE3C4138-60, can also be known as a low PIM N type jack to N type plug cable assembly and will be shipped same-day as it is purchased.

Type N jack to type N plug cable assembly PE3C4138-60 is built with SPP-250-LLPL which is a corrugated coax type. The Pasternack low passive intermodulation corrugated N cable assembly is manufactured with type N to type N cable connectors, has a 50 Ohm impedance and is single shielded. RF specs on this 6 GHz maximum frequency low PIM N type female to type N male cable are located on the specifications PDF datasheet on this page along with CAD drawing and dimensions. PE3C4138-60 can also be used in the other direction and will be N type male to type N female cable assembly if the opposite connectivity is required.

Low PIM type N jack to type N plug cable assembly is just one of more than 45,000 in-stock RF products available. Pasternack is where to buy a high quality N type to type N cable assembly for quick shipment worldwide. Variations of N type cable assemblies can also be built and will ship same-day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component inter-connection and more for RF test & measurement labs, rugged and MIL-STD designed military / defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For all these reasons and more, Pasternack is one of the best websites where to find and buy quality RF cable assemblies like this plenum N female to N male low PIM cable 60 inch length using SPP-250-LLPL coax , LF solder.

Frequently Asked Questions

What is the PE3C4138-60 RF cable assembly used for?

The PE3C4138-60 is an N female to N Male RF cable assembly used to join in-series N interfaces in 50 Ohm systems. It uses SPP-250-LLPL corrugated coax and supports DC to 6 GHz operation with a Low PIM design. Cellular infrastructure and distributed antenna systems use this assembly where stable jumper connections are required between RF components. Engineers also select it for general RF integration when straight N terminations and corrugated cable construction fit the installation.

When would I choose an N male to N female cable instead of an adapter?

The PE3C4138-60 is the right choice when equipment ports need separation by cable length rather than a direct rigid adapter connection. It combines N male and N Male interfaces with SPP-250-LLPL coax, 50 Ohm impedance, and DC to 6 GHz coverage. Base station and DAS layouts often need flexible routing between radios, filters, and antenna line components. A cable assembly also helps manage physical spacing, panel access, and installation constraints better than a fixed adapter.

Is the PE3C4138-60 suitable for cellular infrastructure applications?

The PE3C4138-60 is suitable for cellular infrastructure applications that require a 50 Ohm N interface cable with low PIM characteristics. It supports DC to 6 GHz operation and uses corrugated SPP-250-LLPL coax with straight N terminations on both ends. Base station engineers use assemblies like this in jumper runs, antenna feed segments, and distributed radio interconnects. Its connector and cable materials also support demanding temperature conditions from -55°C to 200°C during operation.

What makes the PE3C4138-60 a good fit for installed RF systems?

The PE3C4138-60 is a good fit for installed RF systems because it combines standard N interfaces with corrugated 50 Ohm coax. It uses brass connector bodies, silver-plated Beryllium Copper contacts, PTFE dielectrics, and an FEP jacket for reliable construction. These materials support RF links that operate across DC to 6 GHz in equipment rooms or outdoor infrastructure. Engineers choose this style when they need dependable interconnects, low PIM behavior, and compatibility with common N connector hardware.
