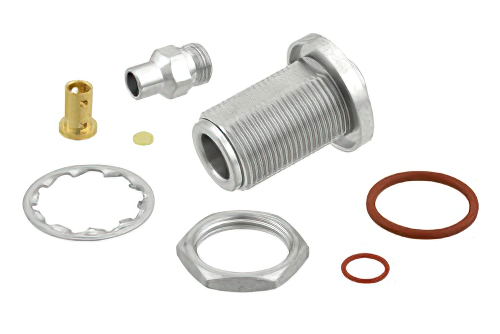

N Female Bulkhead Mount Connector Clamp/Solder Attachment for PE-P160LL

Product ID: PE45447
N Female Bulkhead Mount Connector Clamp/Solder Attachment for PE-P160LL


Image Views:  N Female Bulkhead Mount Connector Clamp/Solder Attachment for PE-P160LL high resolution
Zoomalternate image
View 2


Click for:PE45447 Datasheet
Click for:PE45447 RoHS Cert
Click for:PE45447 REACH Cert
Available Quantity: 14
Pricing Table
QUANTITYPRICE
1-24$102.71
25-49$95.52
50-99$88.33
100-249$82.17
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesN
Connector GenderFemale
Impedance50 Ohm
Body StyleStraight
Attachment MethodClamp/Solder
Mount MethodBulkhead
Minimum FrequencyDC
Maximum Frequency18 GHz


N Female Bulkhead Mount Connector Clamp/Solder Attachment for PE-P160LL

PE45447 type N female bulkhead coaxial connector has an interface type of PE-P160LL and a 50 Ohm impedance. Pasternack type N female bulkhead connector uses shield/contact clamp/solder as an attachment method. Our female N type coaxial connector provides a minimum frequency of DC and a maximum frequency of 18 GHz.

The Pasternack type N female bulkhead coaxial connector has a ptfe dielectric type and a VSWR of 1.16. The Pasternack type N coaxial connector has a passivated stainless steel body. Our PE45447 type N connector uses beryllium copper contact. This type N female bulkhead coaxial RF connector is RoHS and REACH compliant.

This Pasternack female N type bulkhead connector will ship the same day as purchased. Our bulkhead type N female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom type N connector cable assemblies that will ship the same day as well.
