Type N Female to QN Male Cable Assemblies

Check out our new RF calculators & conversion tools...

N Female to QN Male Cable Using PE-C195 Coax

Product ID: PE38457

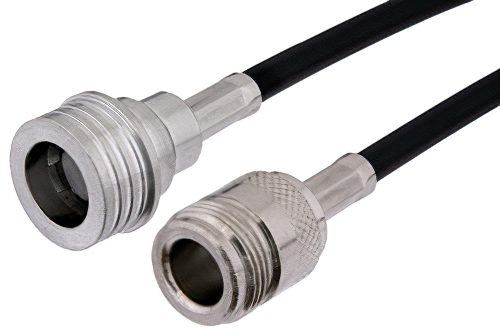

N Female to QN Male Cable Using PE-C195 Coax

Image Views:  N Female to QN Male Cable Using PE-C195 Coax high resolution
Zoom


Click for:PE38457 Datasheet
Click for:PE38457 RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.120 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1N
Connector Gender 1Female
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2QN
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberPE-C195
RF Cable TypePE-C195
RF Cable Impedance50


N Female to QN Male Cable Using PE-C195 Coax

PE38457 is a type N female to QN male cable using PE-C195 coax. This Pasternack type N female to QN male cable assembly uses a 50 Ohm type N for connector 1 and a 50 Ohm QN for connector 2.

Our female N type to male QN cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE38457 N type female to QN male cable assembly is constructed with PE-C195 coax.
