Type N to SMA Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

Low PIM N Female to SMA Male Adapter

Product ID: PE91178

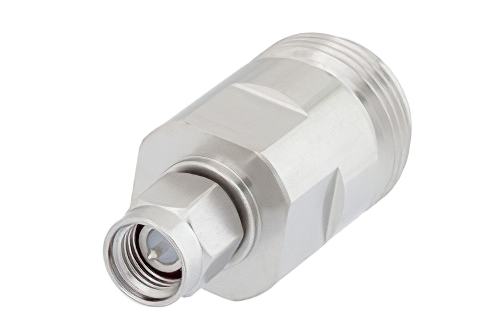

Low PIM N Female to SMA Male Adapter


Image Views:  Low PIM N Female to SMA Male Adapter high resolution
Zoomalternate image

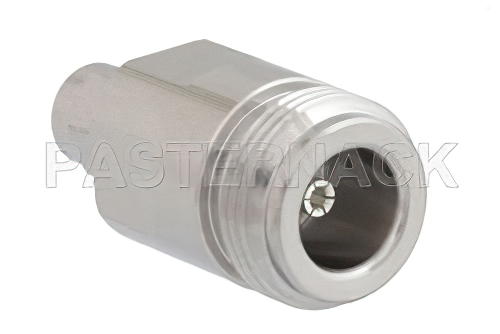

View 2


Click for:PE91178 Datasheet
Click for:PE91178 RoHS Cert
Click for:PE91178 REACH Cert
Available Quantity: 116
Pricing Table
QUANTITYPRICE
1-24$50.34
25-49$47.82
50-99$45.31
100-249$43.29
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1N
Connector Gender 1Female
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2SMA
Connector Gender 2Male
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Frequency, MinDC
Frequency, Max6 GHz
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Mount Method 2None
Connector Body Material 2Brass
Connector Body Plating 2Tri-Metal


Low PIM N Female to SMA Male Adapter

Type N adapter PE91178 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our type N to SMA adapter is a between series coaxial adapter design. This 50 Ohm N type adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 6 GHz.

Type N female to SMA male adapter is one of the many RF components that ship same day as they are ordered. PE91178 female type N to male SMA adapter has a straight body. This Pasternack straight type N coax adapter is a in-line RF adapter.

Our female N type to male SMA adapter PE91178 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This type N to SMA radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
