SMB to Type N Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

N Female to SMB Jack Adapter

Product ID: PE9315

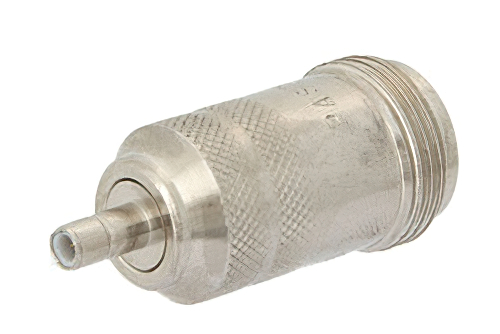

N Female to SMB Jack Adapter

Image Views:  N Female to SMB Jack Adapter high resolution
Zoom


Click for:PE9315 Datasheet
Click for:PE9315 RoHS Cert
Click for:PE9315 REACH Cert
Available Quantity: 2,388
Pricing Table
QUANTITYPRICE
1-24$68.51
25-49$65.08
50-99$61.66
100-249$58.92
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1N
Connector Gender 1Female
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2SMB
Connector Gender 2Jack
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Mount Method 2None


N Female to SMB Jack Adapter

Type N adapter PE9315 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our type N to SMB adapter is a between series coaxial adapter design. This 50 Ohm N type adapter is precision manufactured to RF components industry specifications.

Type N female to SMB jack adapter is one of the many RF components that ship same day as they are ordered. PE9315 female type N to jack SMB adapter has a straight body. This Pasternack straight type N coax adapter is a in-line RF adapter.

Our female N type to jack SMB adapter PE9315 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This type N to SMB radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
