SMC 75 Ohm to Type N 75 Ohm Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

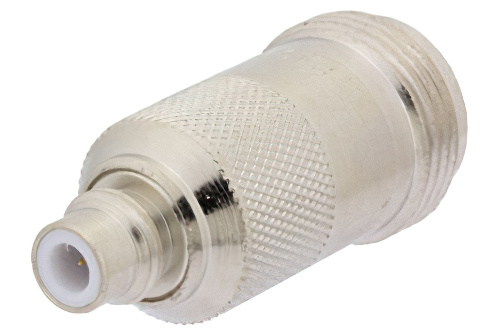

75 Ohm N Female to 75 Ohm SMC Jack Adapter

Product ID: PE9587
75 Ohm N Female to 75 Ohm SMC Jack Adapter

Image Views:  75 Ohm N Female to 75 Ohm SMC Jack Adapter high resolution
Zoom


Click for:PE9587 Datasheet
Click for:PE9587 RoHS Cert
Click for:PE9587 REACH Cert
Available Quantity: 65
Pricing Table
QUANTITYPRICE
1-24$91.30
25-49$86.74
50-99$82.17
100-249$78.52
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1N
Connector Gender 1Female
Connector Polarity 1Standard
Connector Impedance 175 Ohm
Connector Series 2SMC
Connector Gender 2Jack
Connector Polarity 2Standard
Connector Impedance 275 Ohm
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Mount Method 2None


75 Ohm N Female to 75 Ohm SMC Jack Adapter

Type N adapter PE9587 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our type N to SMC adapter is a between series coaxial adapter design. This 75 Ohm type N adapter is precision manufactured to RF components industry specifications.

Type N female to SMC jack adapter is one of the many RF components that ship same day as they are ordered. PE9587 female N type to jack SMC adapter has a straight body. This Pasternack straight type N coax adapter is a in-line RF adapter.

Our female type N to jack SMC adapter PE9587 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This N type to SMC radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
