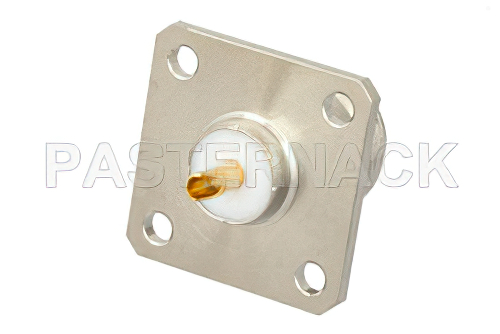

N Female Connector Solder Attachment 4 Hole Flange Mount Solder Cup Terminal, .718 inch Hole Spacing

Product ID: PE4013
N Female Connector Solder Attachment 4 Hole Flange Mount Solder Cup Terminal, .718 inch Hole Spacing


Image Views:  N Female Connector Solder Attachment 4 Hole Flange Mount Solder Cup Terminal, .718 inch Hole Spacing high resolution
Zoomalternate image
View 2


Click for:PE4013 Datasheet
Click for:PE4013 RoHS Cert
Available Quantity: 2,670
Pricing Table
QUANTITYPRICE
1-24$11.92
25-49$11.09
50-99$10.25
100-249$9.54
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesN
Connector GenderFemale
Impedance50 Ohm
Body StyleStraight
Attachment MethodSolder
Mount Method4 Hole Flange
Minimum FrequencyDC
Maximum Frequency11 GHz


N Female Connector Solder Attachment 4 Hole Flange Mount Solder Cup Terminal, .718 inch Hole Spacing

PE4013 type N female 4 hole flange terminal connector has an interface type of solder cup and a 50 Ohm impedance. Pasternack type N female 4 hole flange connector uses shield/contact solder as an attachment method. Our female type N terminal connector provides a minimum frequency of DC and a maximum frequency of 11 GHz.

The Pasternack N type female 4 hole flange terminal connector has a teflon dielectric type and a VSWR of 1.3. The Pasternack N type terminal connector has a brass body with nickel plating. Our PE4013 N type connector uses brass contact. This type N female 4 hole flange terminal RF connector is RoHS and REACH compliant.

This Pasternack female N type 4 hole flange connector will ship the same day as purchased. Our 4 hole flange type N female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom type N connector cable assemblies that will ship the same day as well.
