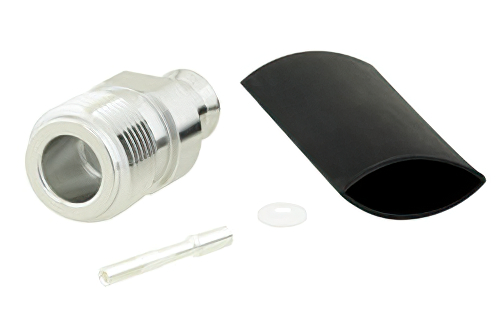

N Female Connector Solder Attachment for SPP-250-LLPL, Low PIM

Product ID: PE45426
N Female Connector Solder Attachment for SPP-250-LLPL, Low PIM


Image Views:  N Female Connector Solder Attachment for SPP-250-LLPL, Low PIM high resolution
Zoomalternate image

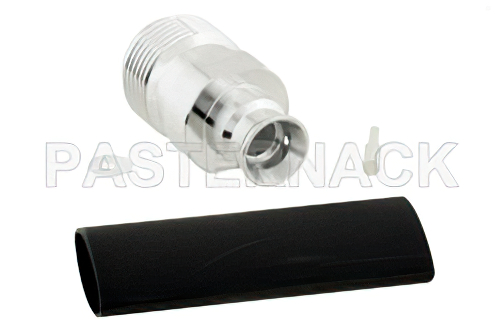

View 2


Click for:PE45426 Datasheet
Click for:PE45426 RoHS Cert
Click for:PE45426 REACH Cert
Available Quantity: 54
Pricing Table
QUANTITYPRICE
1-24$24.31
25-49$22.61
50-99$20.91
100-249$19.45
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesN
Connector GenderFemale
Impedance50 Ohm
Body StyleStraight
Attachment MethodSolder/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency6 GHz


N Female Connector Solder Attachment for SPP-250-LLPL, Low PIM

PE45426 type N female coaxial connector has an interface type of SPP-250-LLPL and a 50 Ohm impedance. Pasternack type N female connector uses shield/contact solder/solder as an attachment method. Our female type N coaxial connector provides a minimum frequency of DC and a maximum frequency of 6 GHz.

The Pasternack type N female coaxial connector has a ptfe dielectric type and a VSWR of 1.3. The Pasternack type N coaxial connector has a brass body with tri-metal plating. Our PE45426 type N connector uses phosphor bronze contact and a tri-metal plating material. This N type female coaxial RF connector is RoHS and REACH compliant.

This Pasternack female N type connector will ship the same day as purchased. Our type N female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom type N connector cable assemblies that will ship the same day as well.
